Description

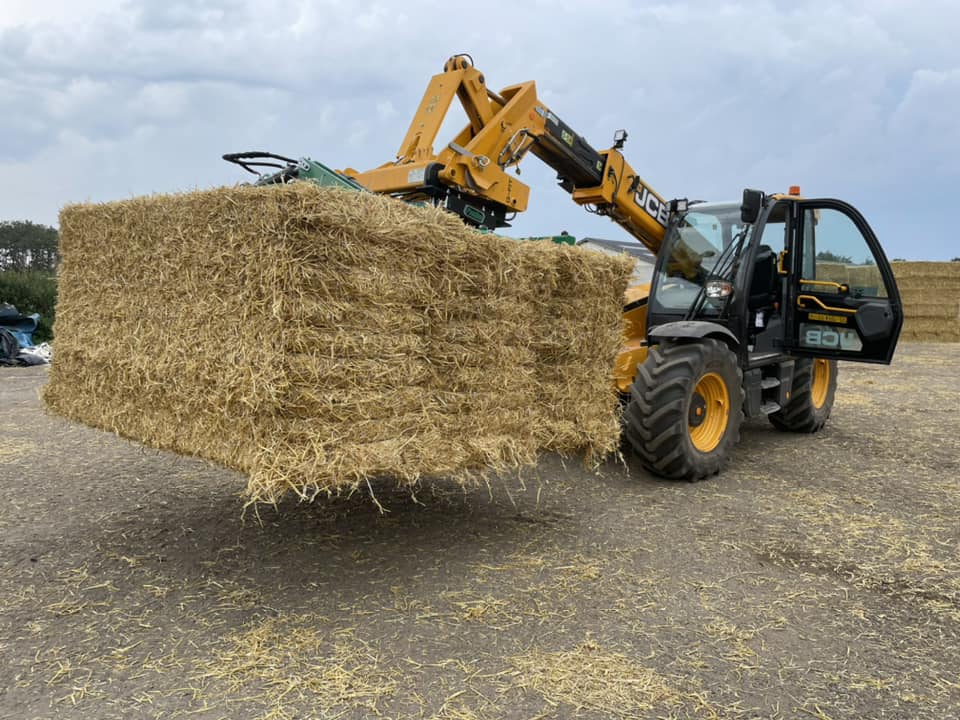

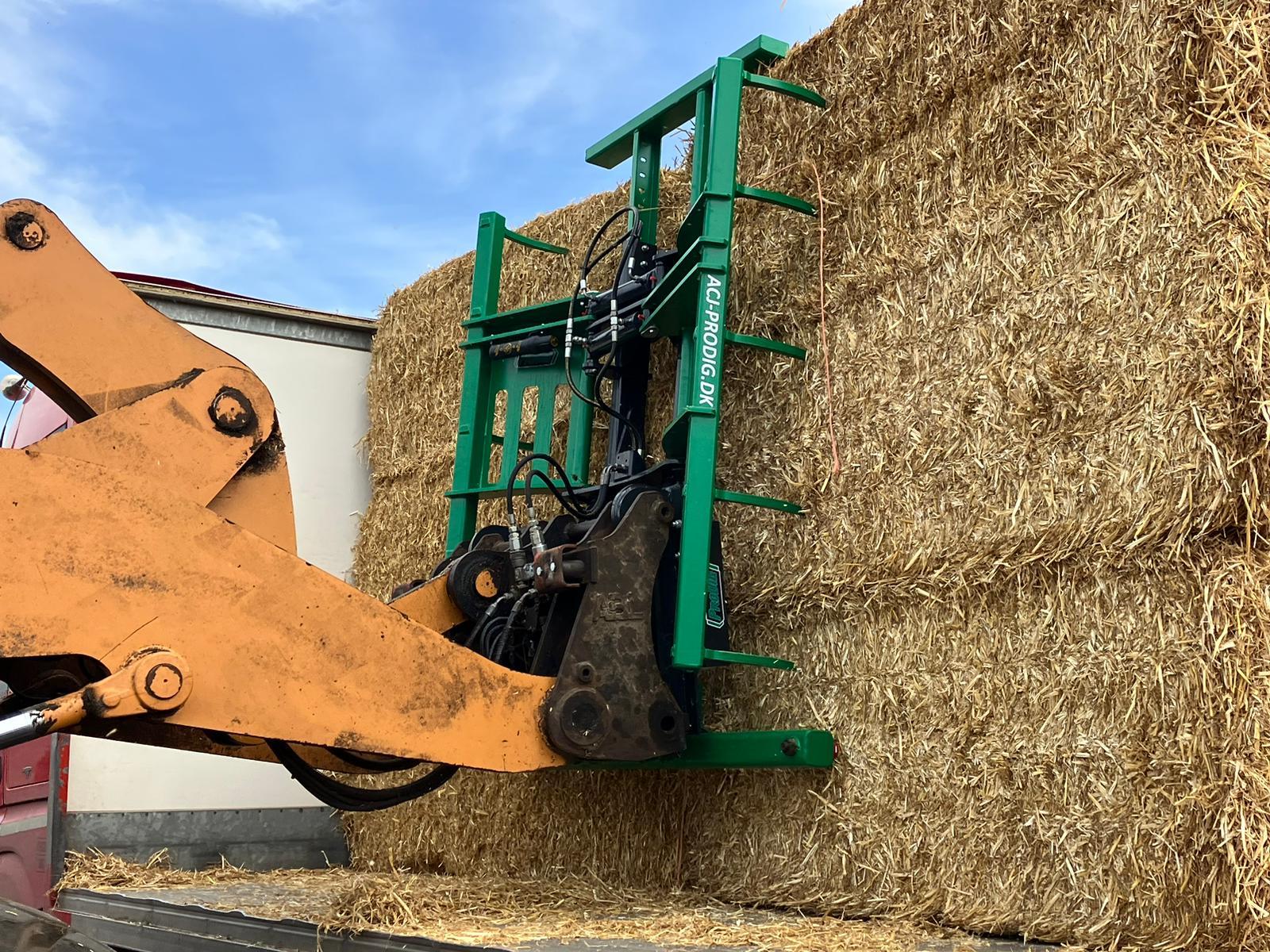

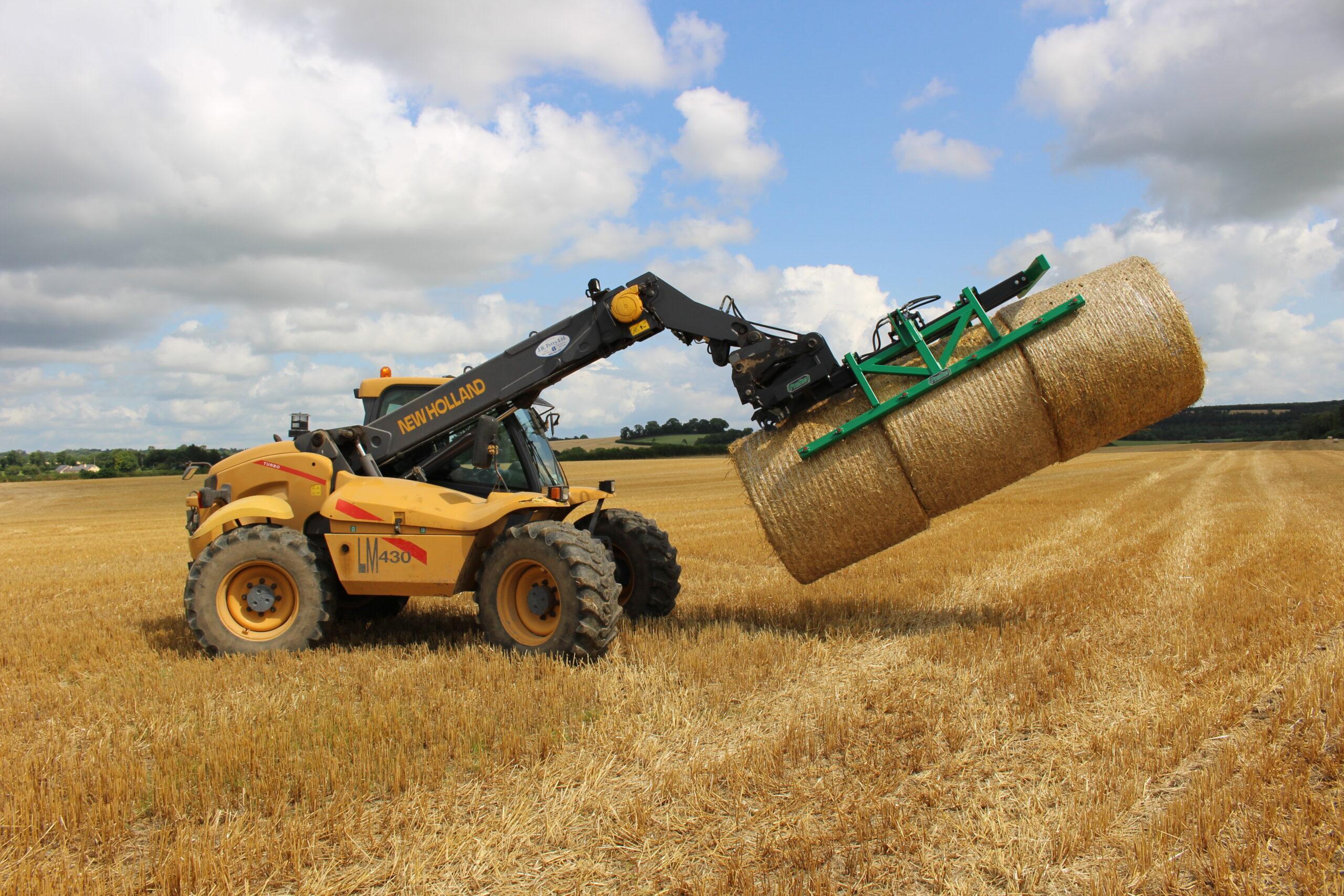

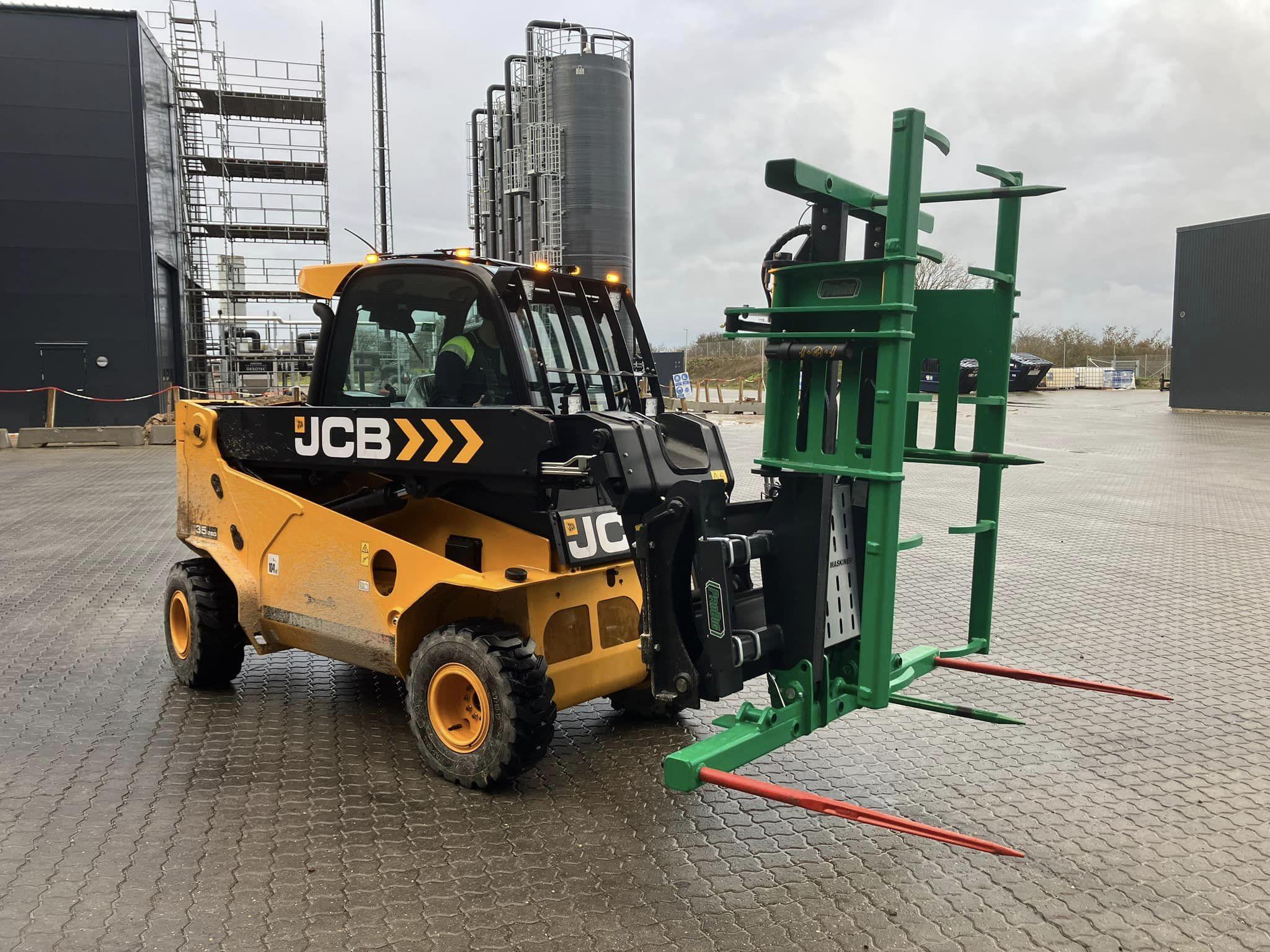

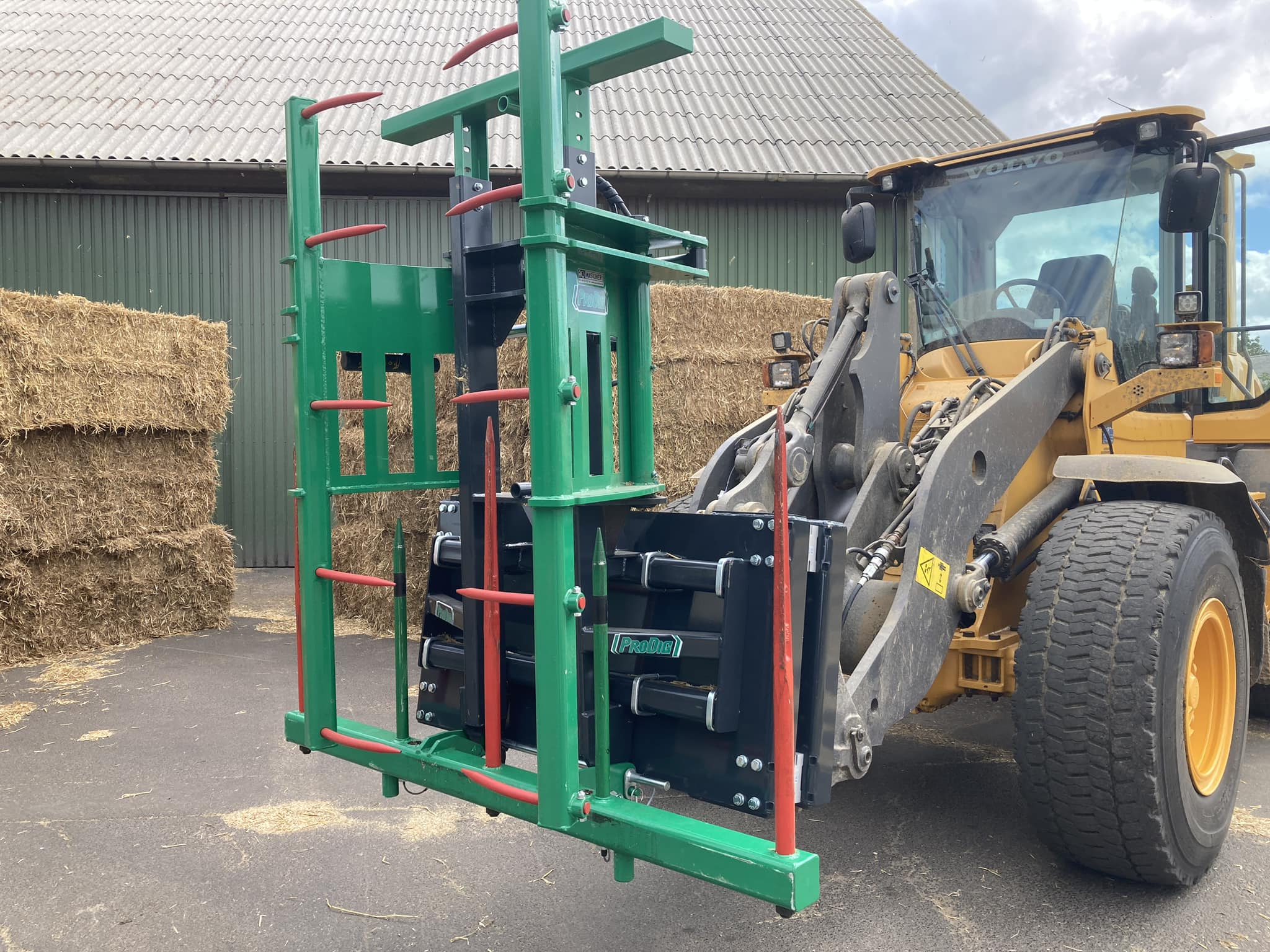

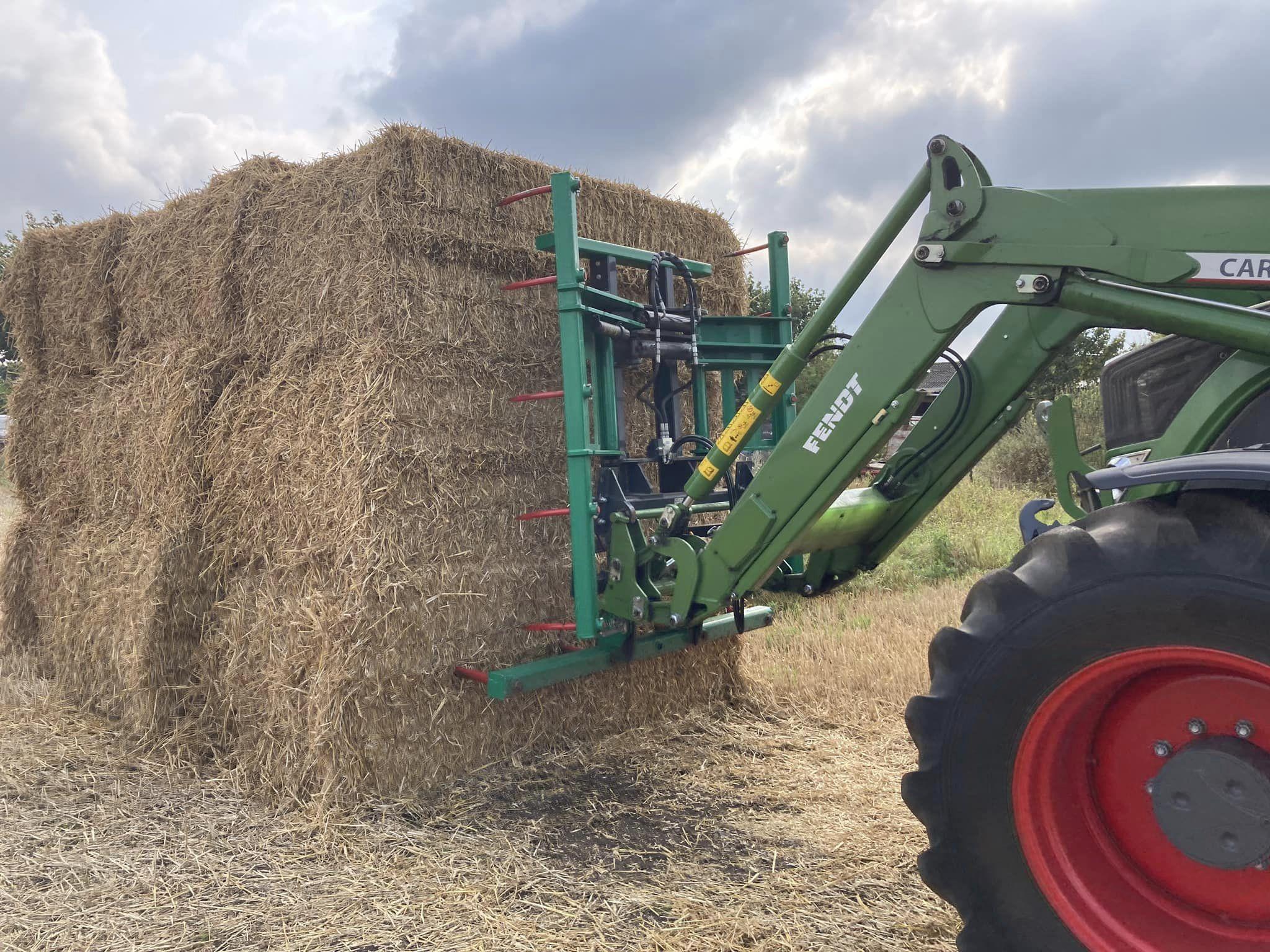

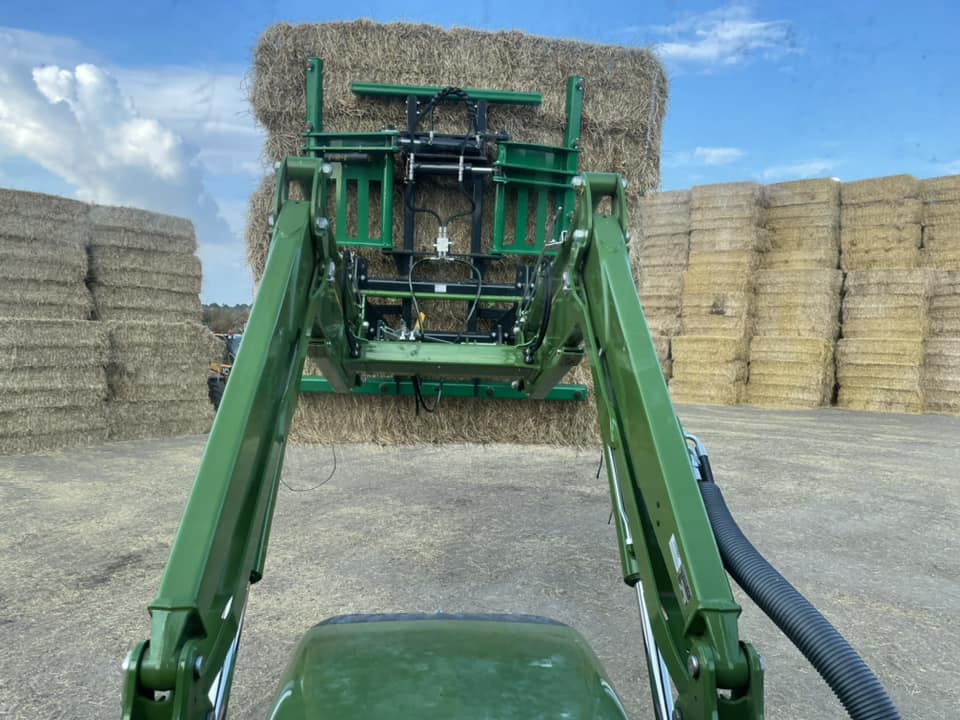

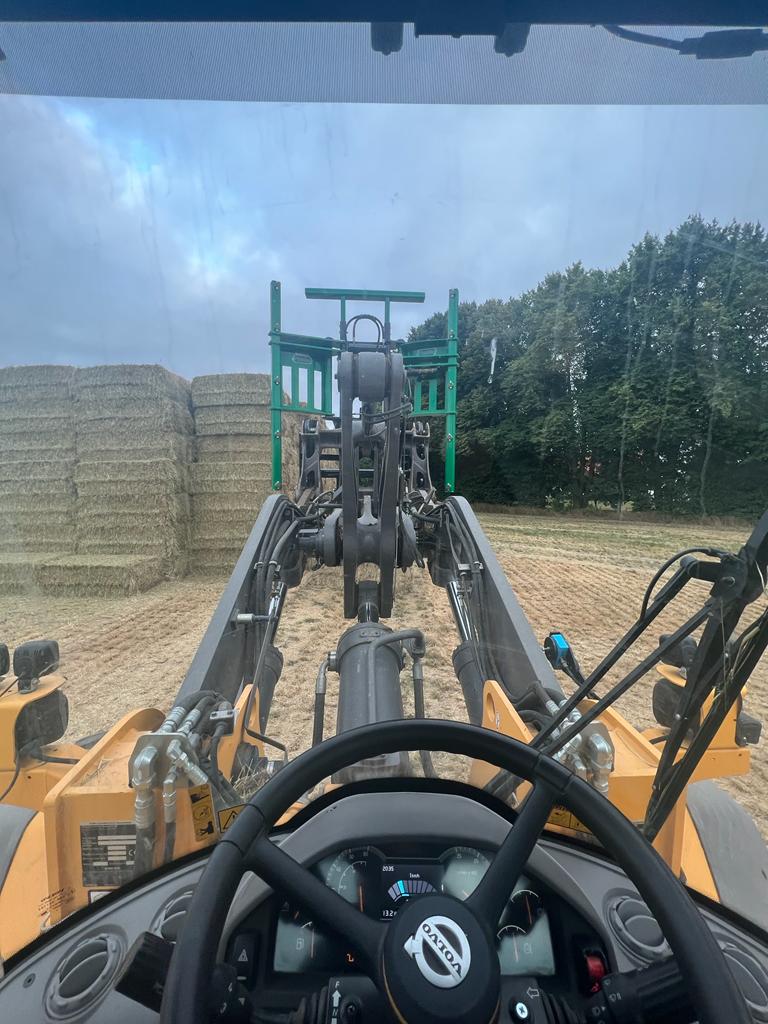

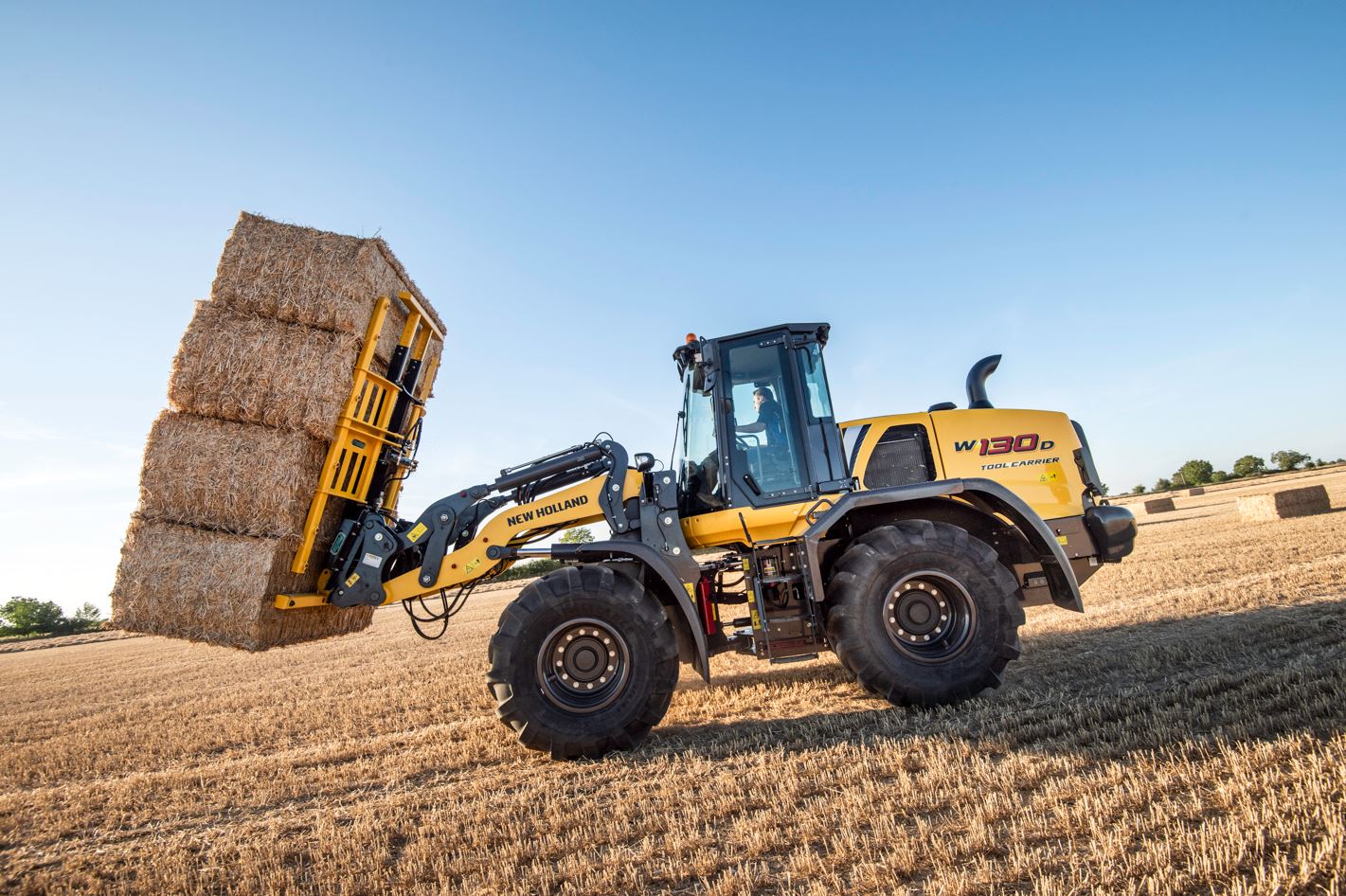

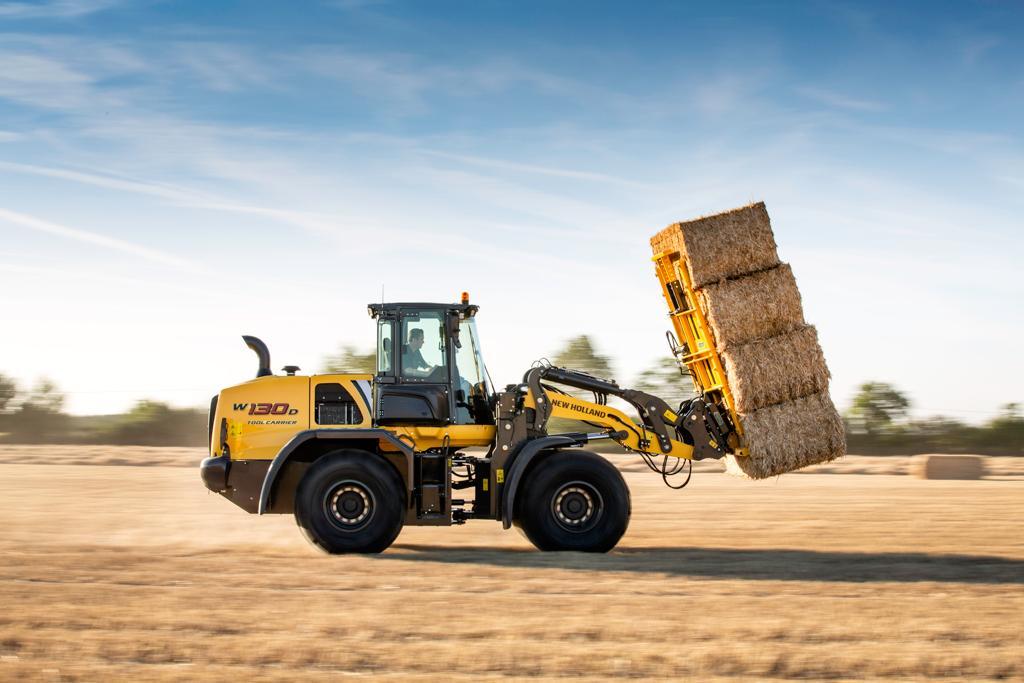

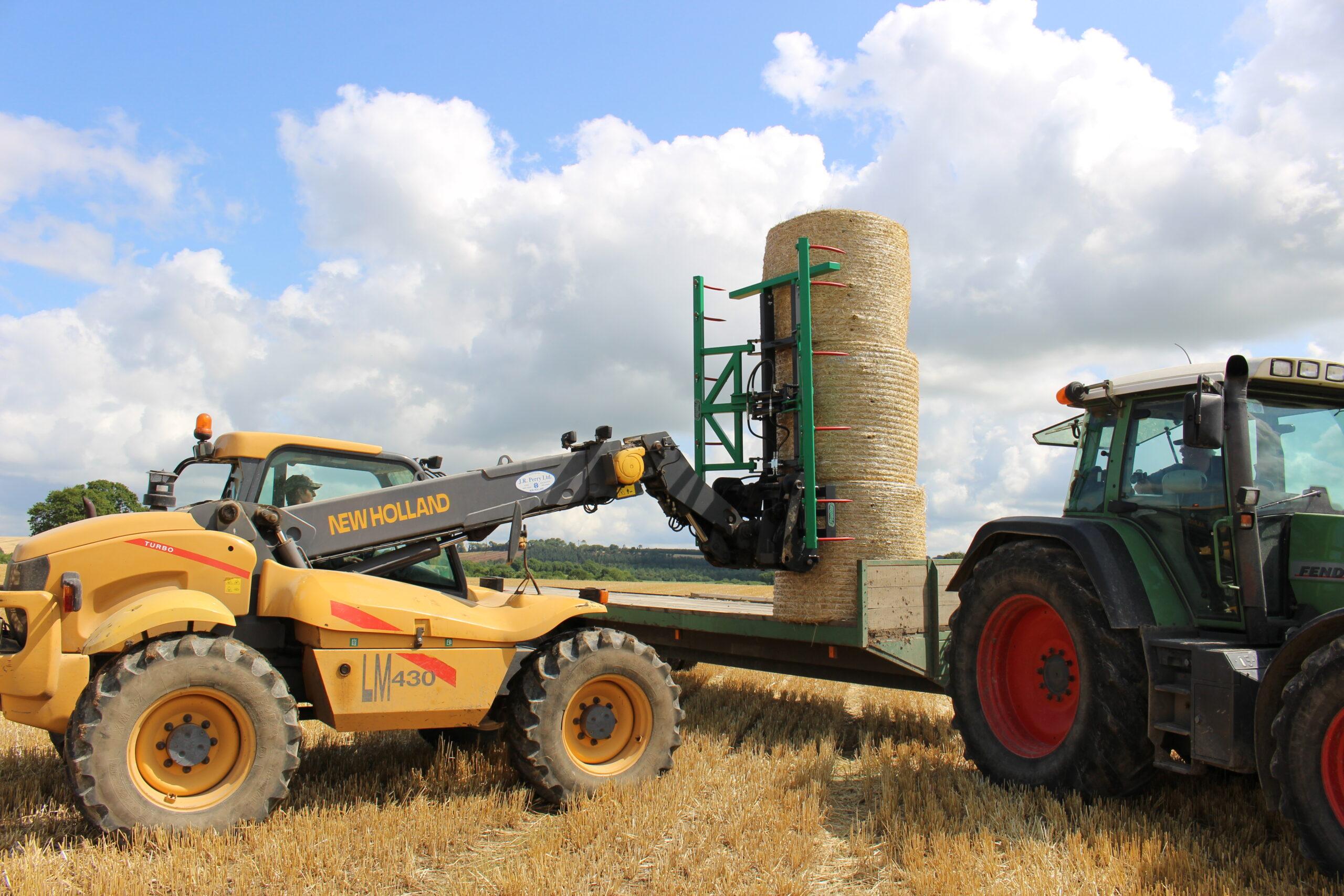

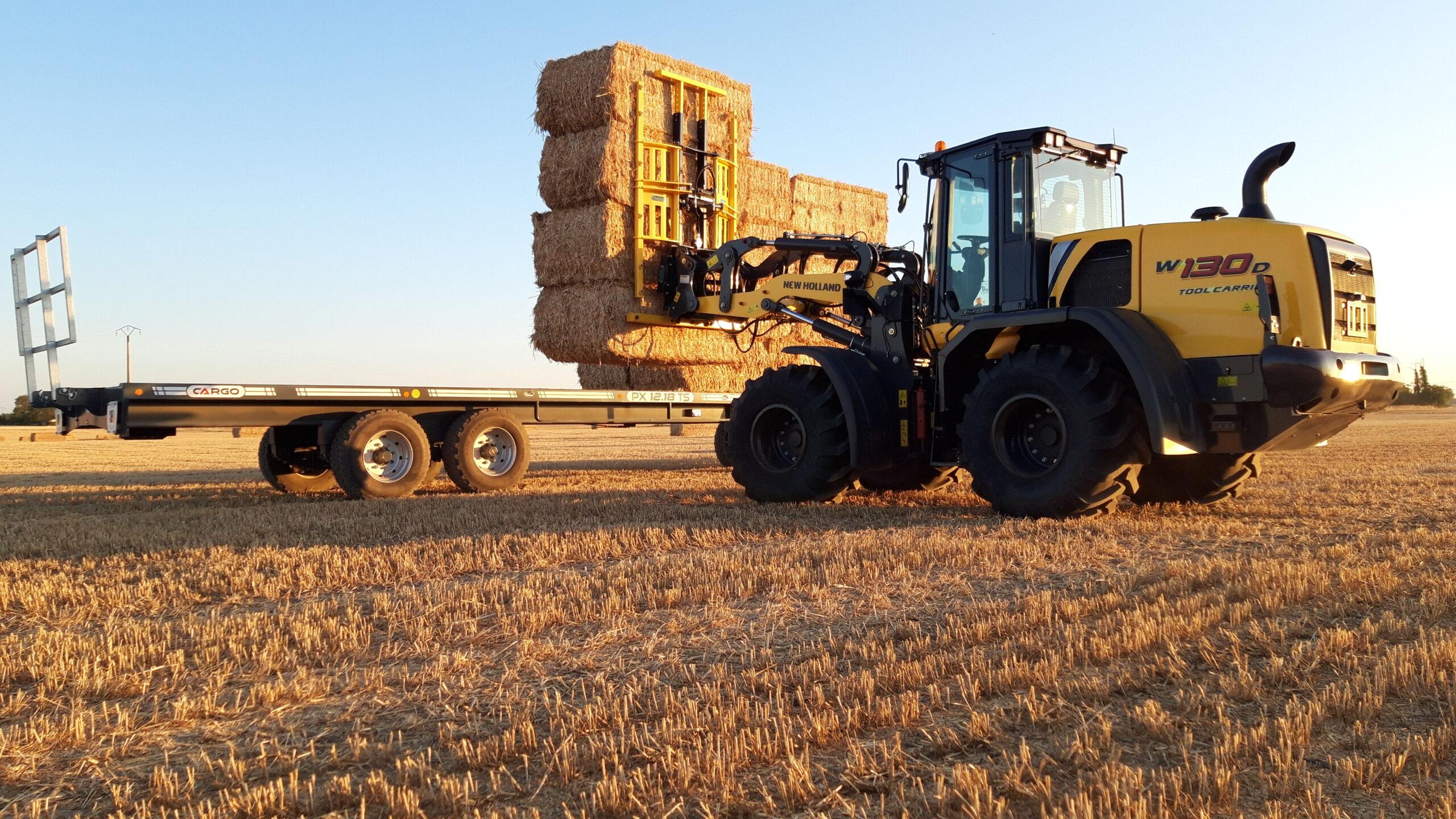

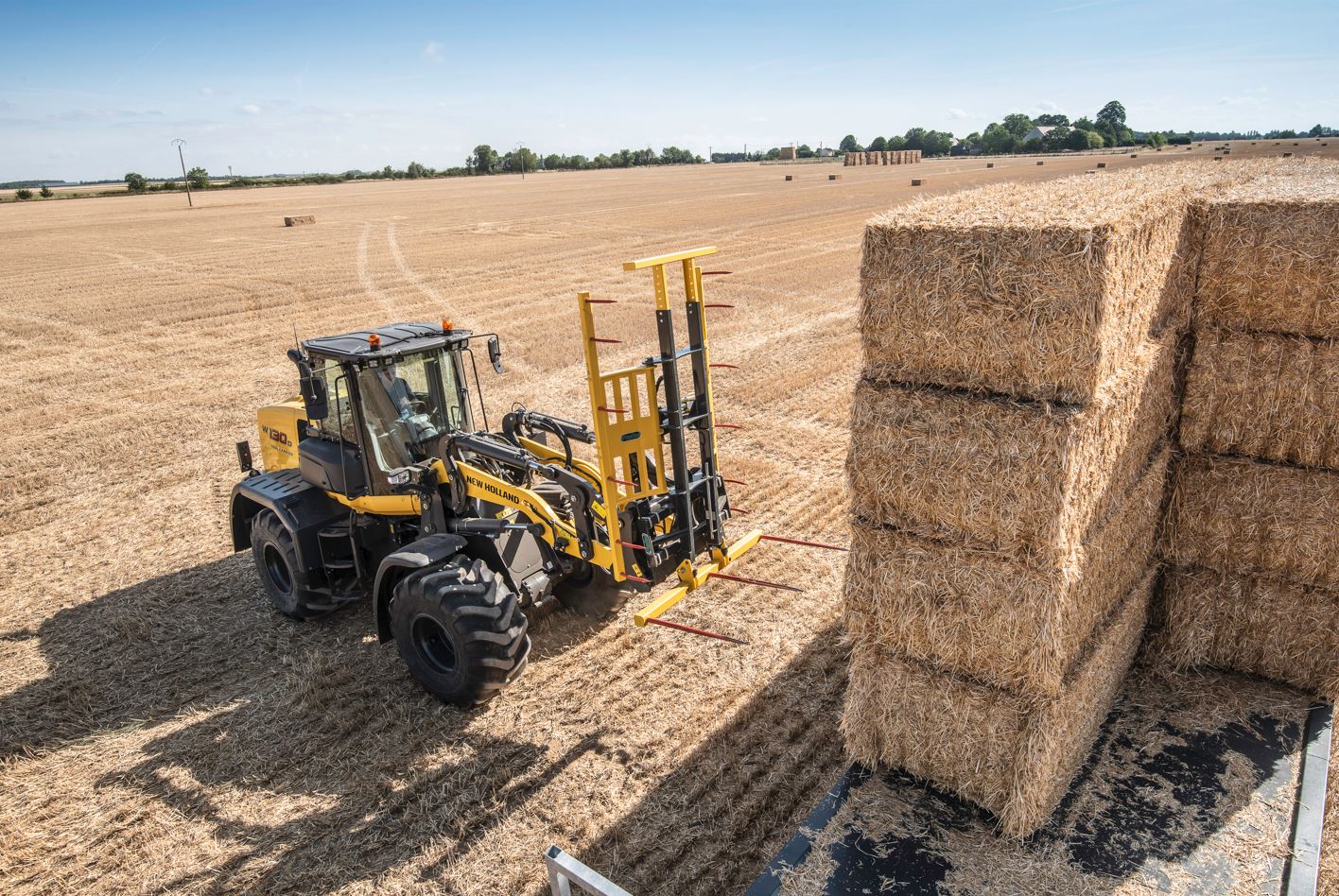

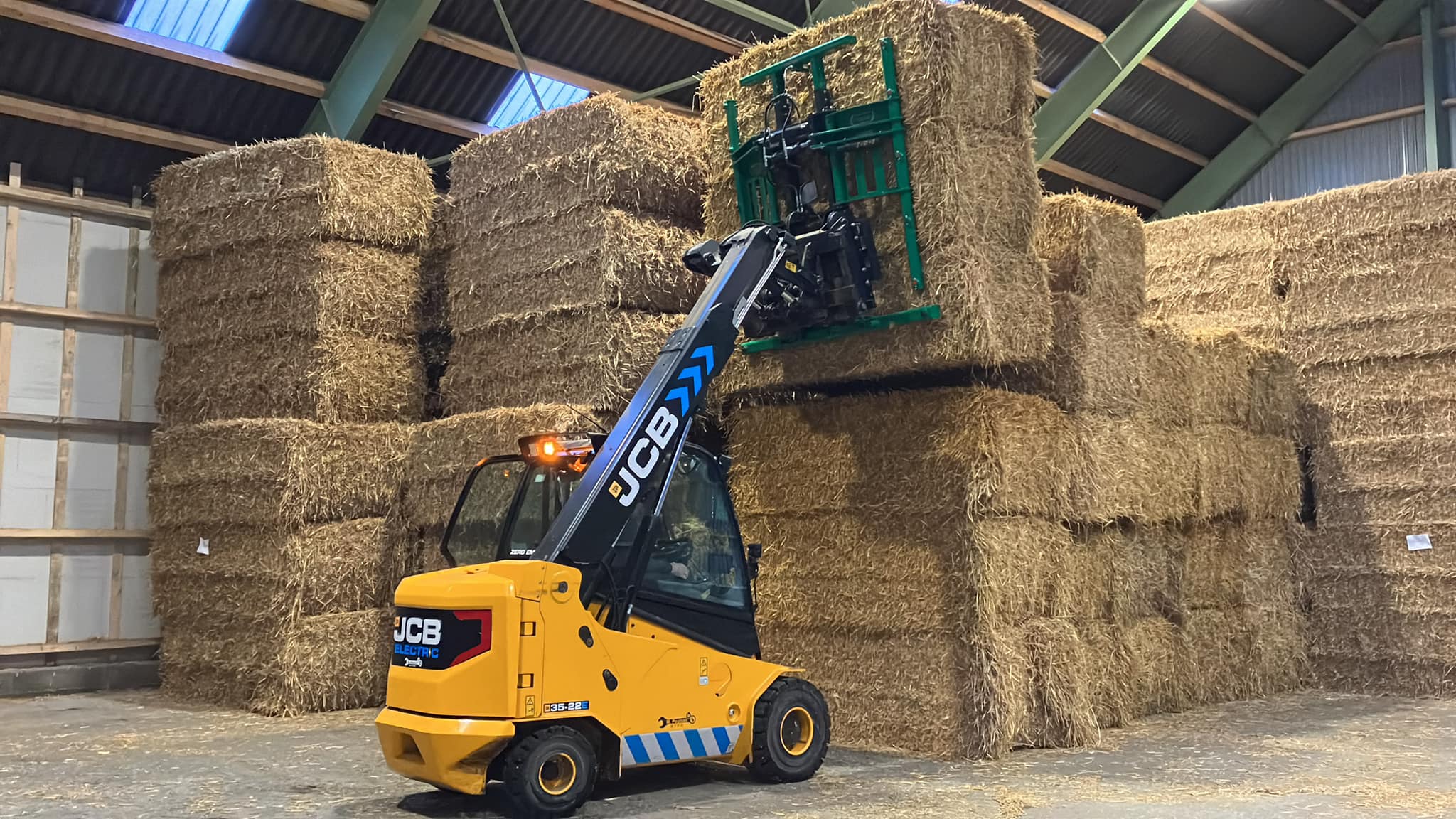

The Prodig Bale Stacker is an attachment designed to increase efficiency when handling large numbers of round and square bales with units available to suit Tractor Loader or Tele-Handler/Articulated Loader.
- Hydraulic grab for moving and stacking large square and round bales.

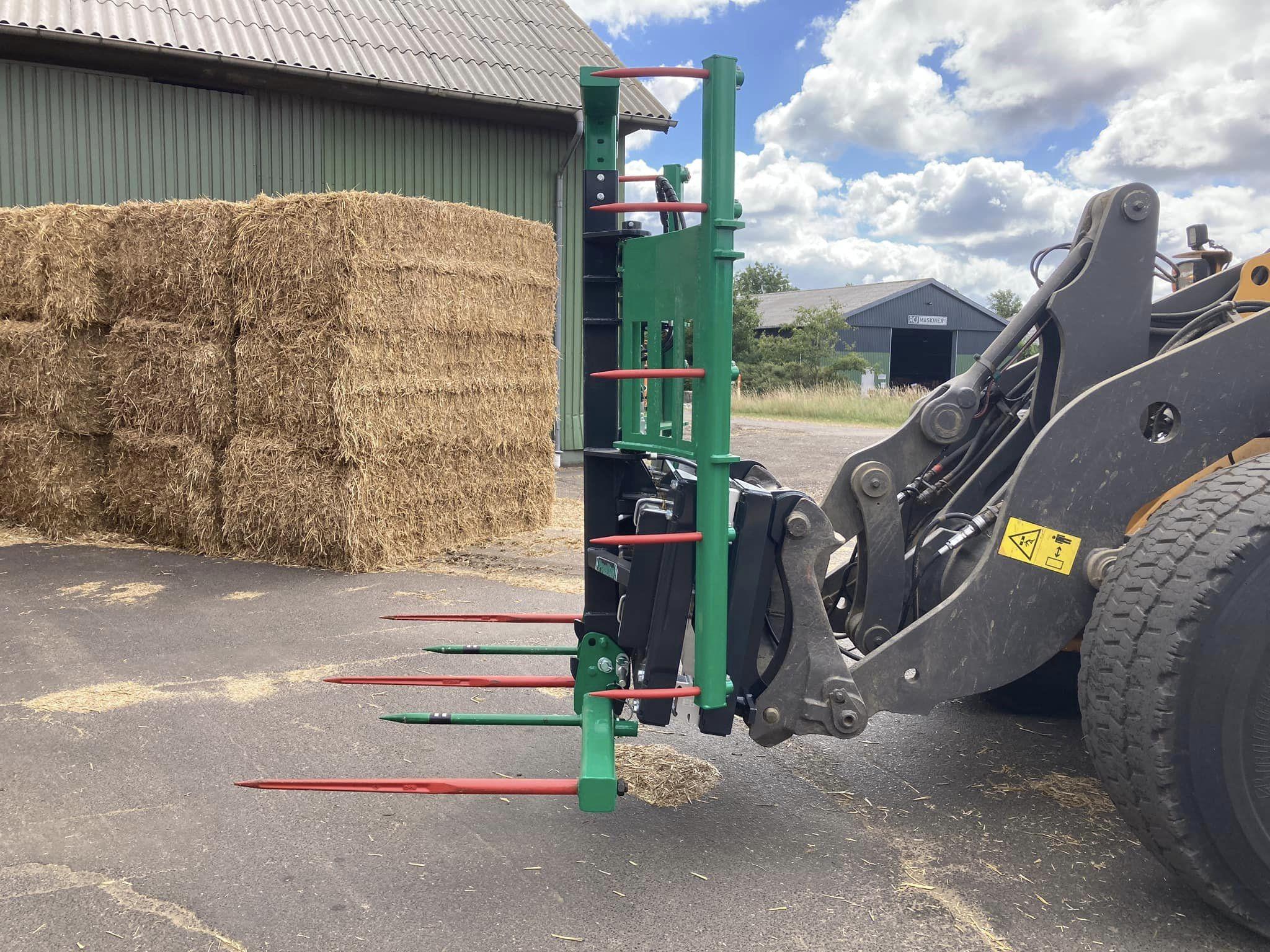

- Removable bottom tine bar which can be floating, or fixed, up or down as standard.
- Curved tines in arm spaced to catch all bale types.
- Double hydraulic ram system with no troublesome linkage bars.
- Fitted as standard- Adjustable pressure relief valve to reduce damage to bales from over gripping
- Top push bar with height adjustment to stabilize the stack when retracting bottom tines.
- Heavy duty construction using structural grade box section and plate throughout.
- Available with bolt on hitch system to suit all machines.
- All hinge points fitted with greasable bushings.
- Unique locking system on bottom bar allows it to be removed in seconds with no tools required.
- Arms made with plate section for a stiffer frame.
- Bolt on hitches available to fit all machines.
Technical Data
| Bale Stacker | C320 | C430 |
| Height (mm) | 2088 | 2753 |
| Width (mm) | 1840 when opened | 1840 when opened |
| Depth (mm) | 700 when closed | 700 when closed |
| Capacity | 3(3′) rectangular bales or 2 round bales | 4 (3′) rectangular bales or 3 round bales |
| Weight (kg) | 561 including bottom bar | 645 including bottom bar |
| 456 excluding bottom bar | 537 excluding bottom bar | |
| Number of cylinders x Diameter (mm) | 2x70mm Bore, 40mm Rod | 2x70mm Bore, 40mm Rod |
| Bottom Tine length (mm) | 990 (39”) | 990 (39”) |
| Arm Tine length (mm) | 410 | 410 |
All measurements approx (±5mm, ±5kg), Weight excludes brackets as these vary.
*Machines operating above 200 BAR will require a pressure relief valve.
