Description

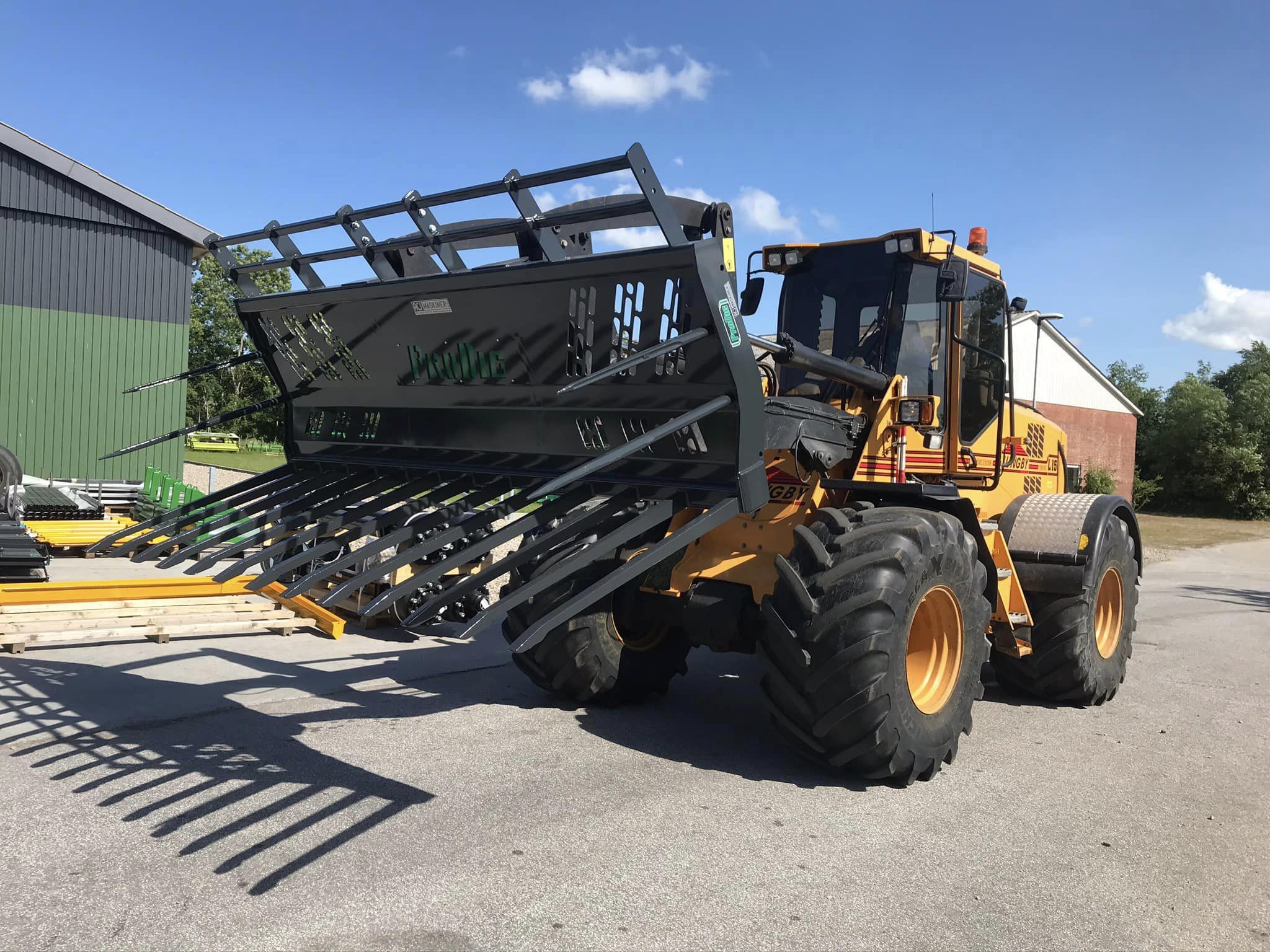

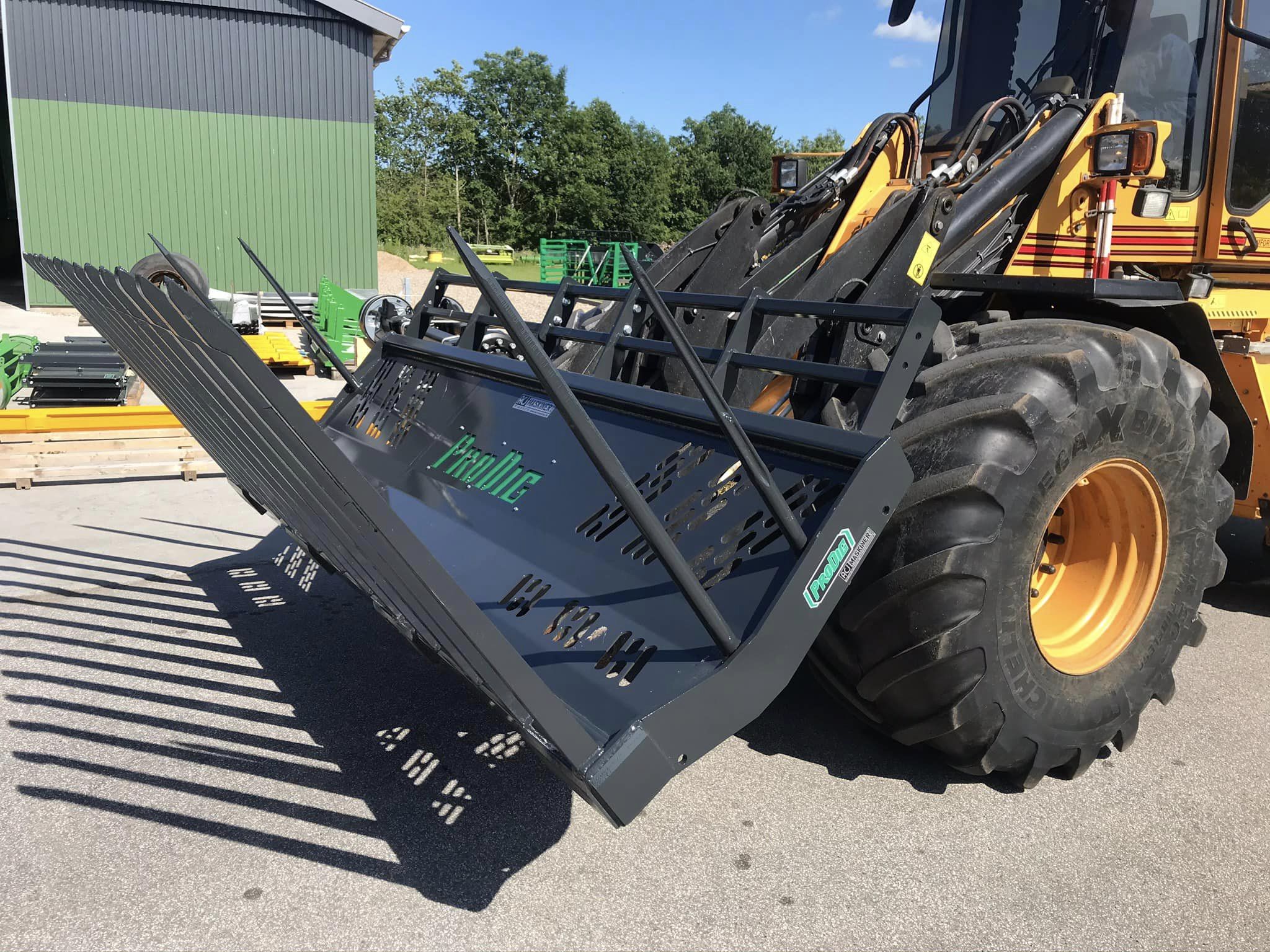

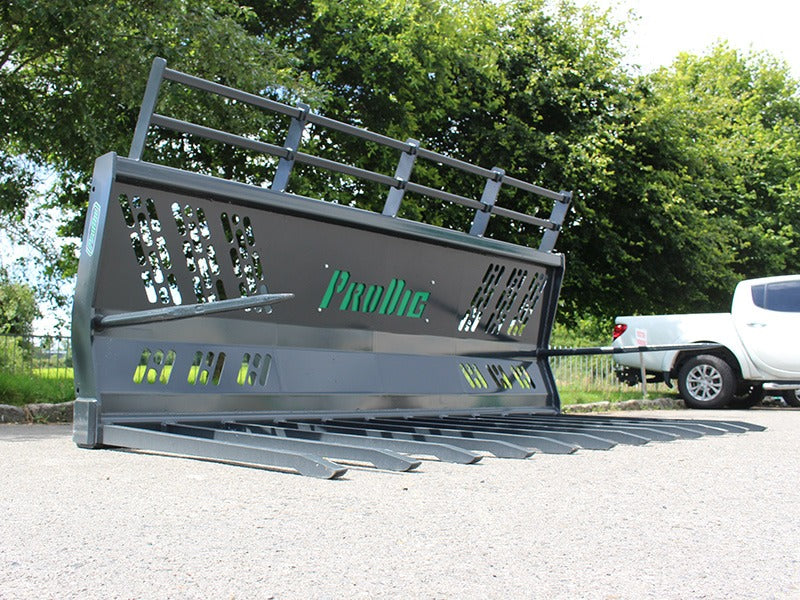

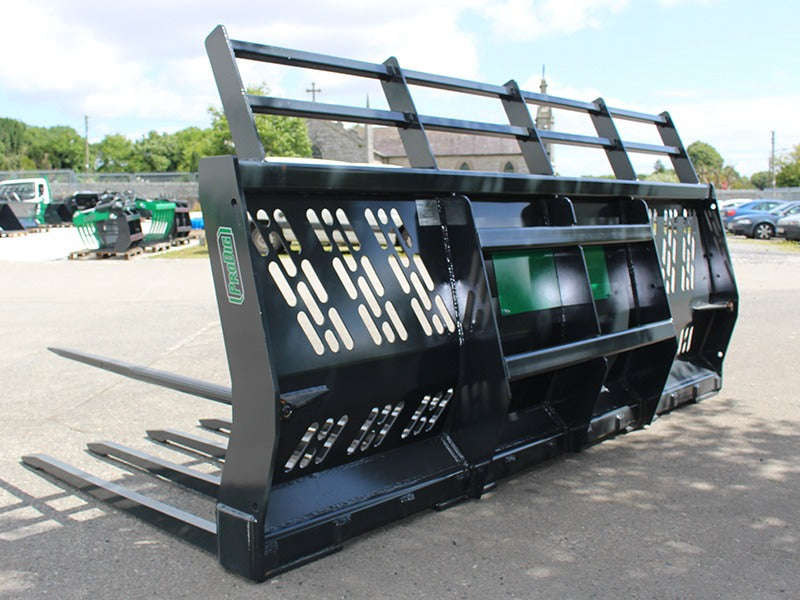

The Prodig Contractor Grass Fork is designed for large and medium wheeled loaders handling grass silage in compact areas. Suitable for large tele-handlers or articulated loaders.
- Designed for use on articulated loaders.
- Available in widths from 2.5m to 3.6m.
- Heavy duty construction using high yield structural hollow section and plate.

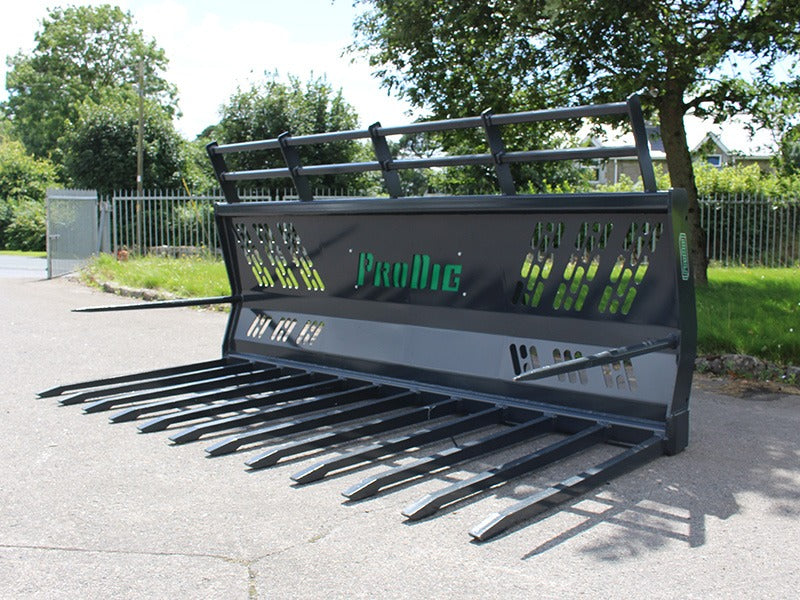

- 40mm x 1400mm profiled Hardox tines used in bottom bar for long service life.
- Hardox tines are manufactured with replaceable wear tips meaning the tine never has to be replaced.

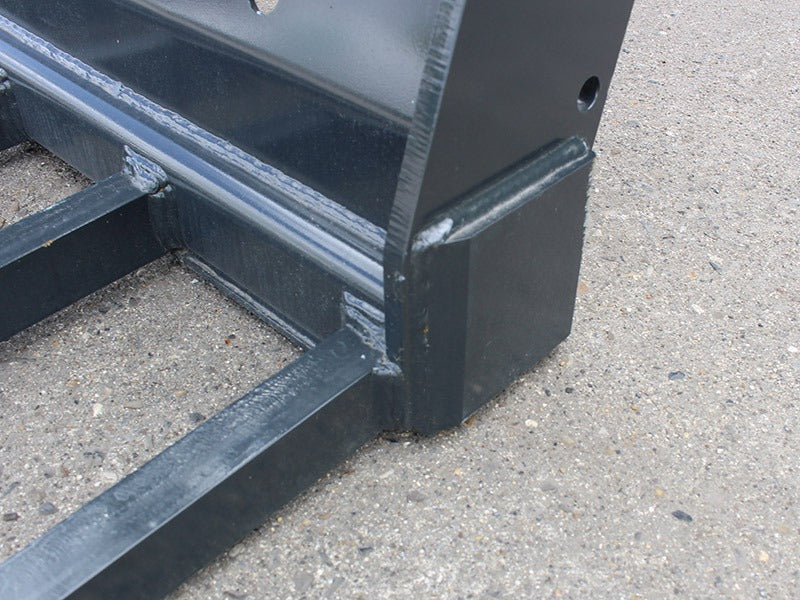

- Bottom wear pads made from 400 grade cutting edge.

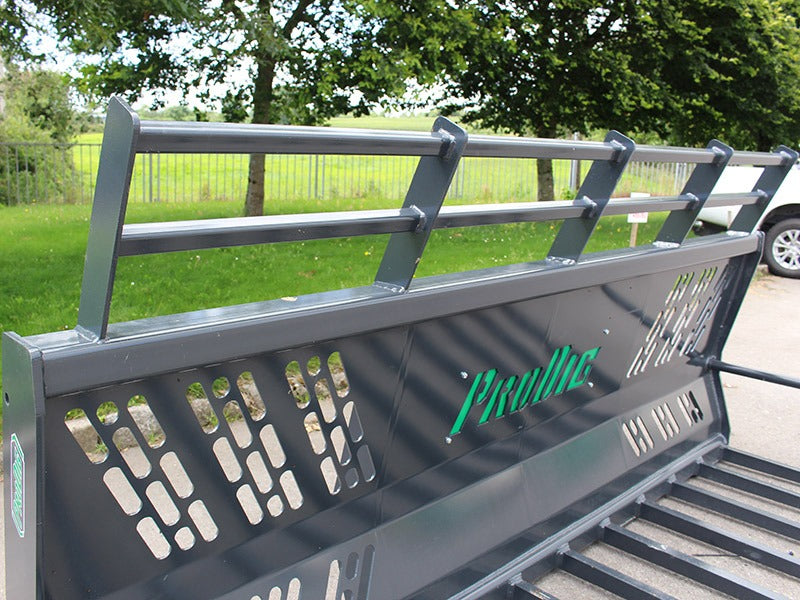

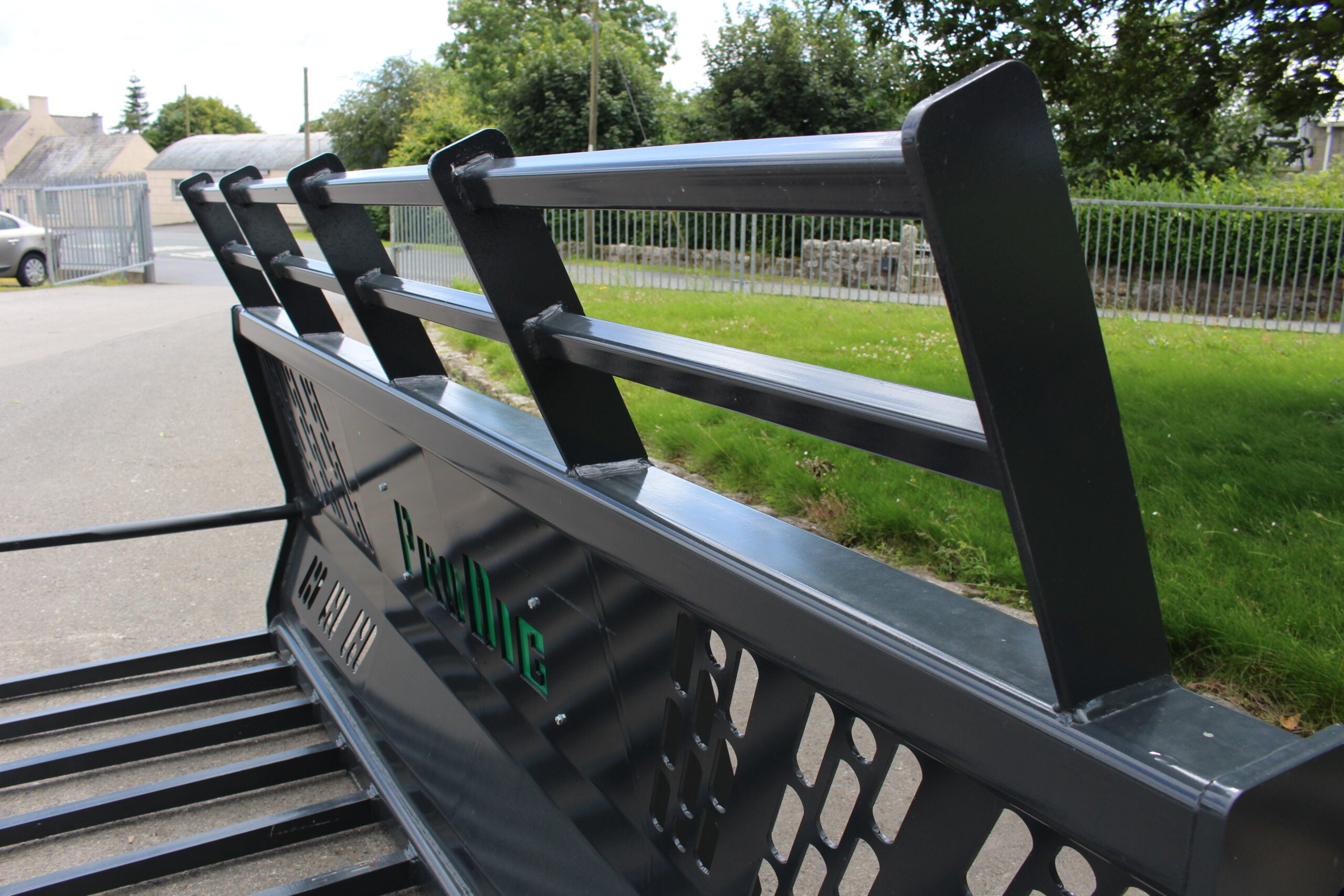

- Full width spill frame to increase capacity and prevent spillage of material onto the loader.

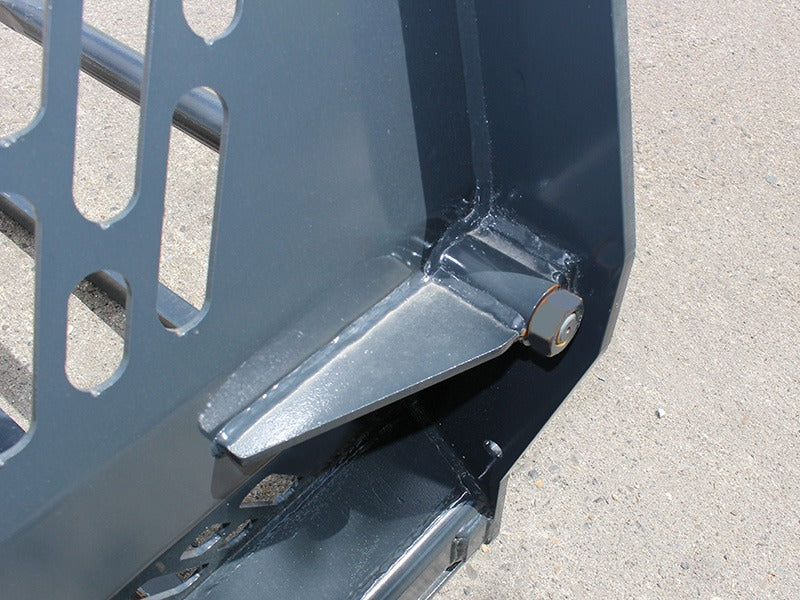

- Bolt on hitch system to suit all machines.
Technical Data
| Contractor Grass Fork | CF 2500 | CF 2750 | CF 3000 | CF 3300 | CF 3600 | |
| Width (mm) | A | 2500 | 2750 | 2995 | 3300 | 3600 |
| Height (mm) | B | 1415 | 1415 | 1415 | 1415 | 1485 |
| Depth (mm) | C | 1470 | 1470 | 1470 | 1470 | 1470 |
| Weight (kg) | 630 | 730 | 830 | 855 | 893 | |
| Tine length (mm) | 1400 | 1400 | 1400 | 1400 | 1400 | |
| Tine Spacing (mm) | 220 | 220 | 220 | 230 | 230 | |
| Number of tines | 10 | 11 | 12 | 13 | 14 |
All measurements approx. (±5mm, ±5kg).
Weight includes Euro 50 Hitch.
Weight of other brackets may vary.
Models
| Grass Fork – Contractor (2.5m) | CF 2500 |
| Grass Fork – Contractor (2.75m) | CF 2750 |
| Grass Fork – Contractor (3.0m) | CF 3000 |
| Grass Fork – Contractor (3.3m) | CF 3300 |
| Grass Fork – Contractor (3.6m) | CF 3600 |
| Double Side Tines | FGF DST |
| Bolt in center section for Z-Linkage | FGF ZUC |
| Transport Tine Guard | FGF TG |
| Colour options (any off standard color) | COLOUR |
| Replacement Hardox wear tips for tines (each) | HX TIP XL |
