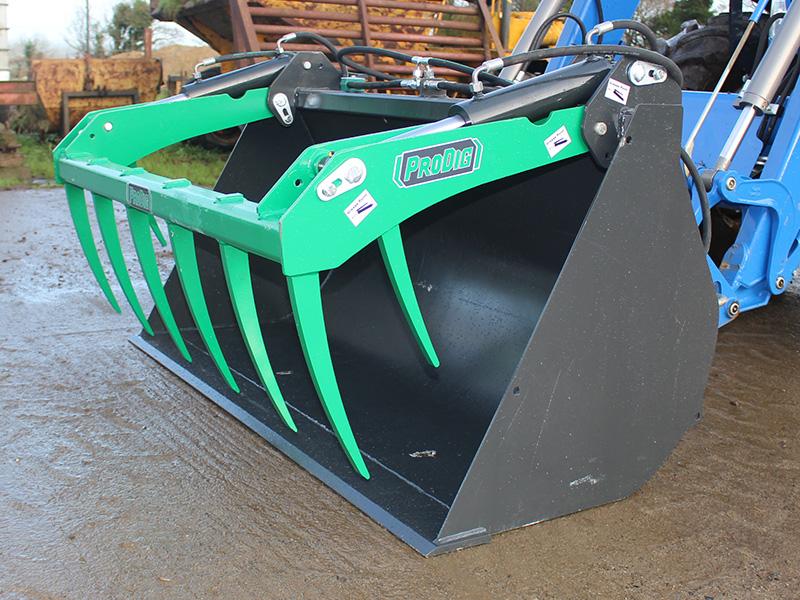

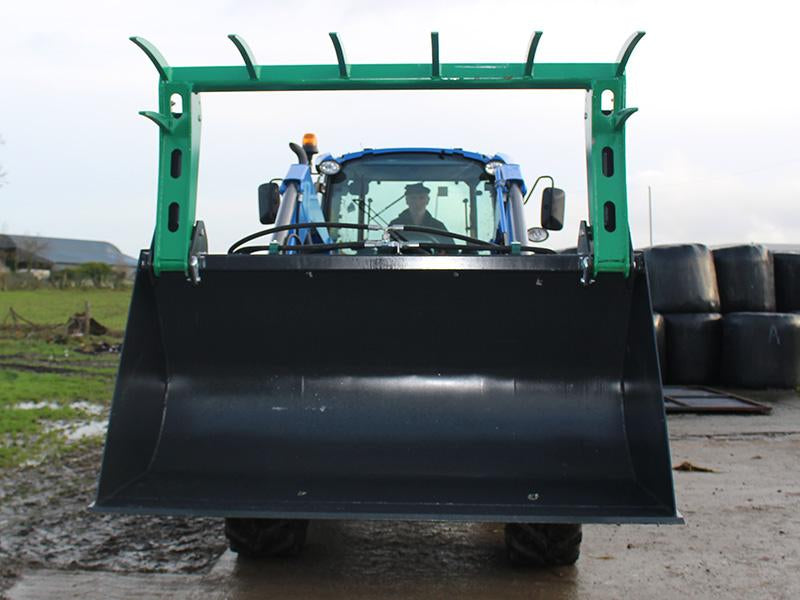

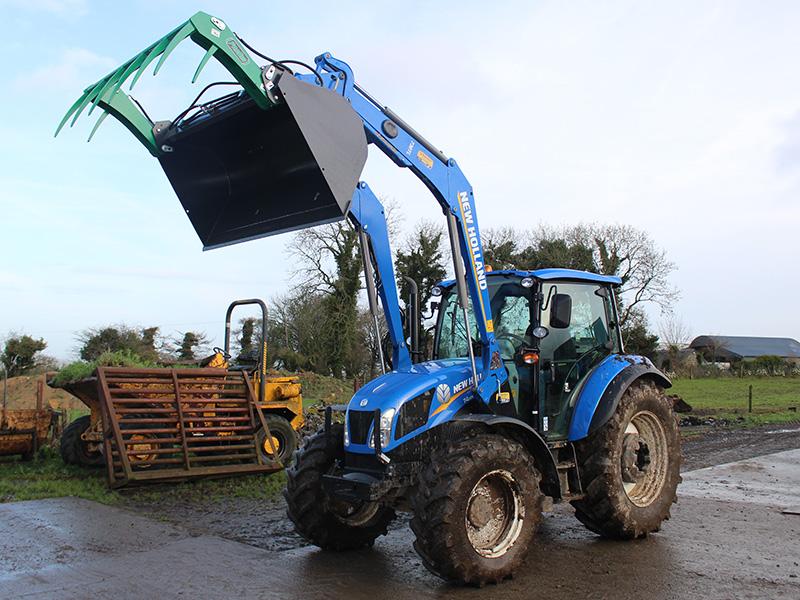

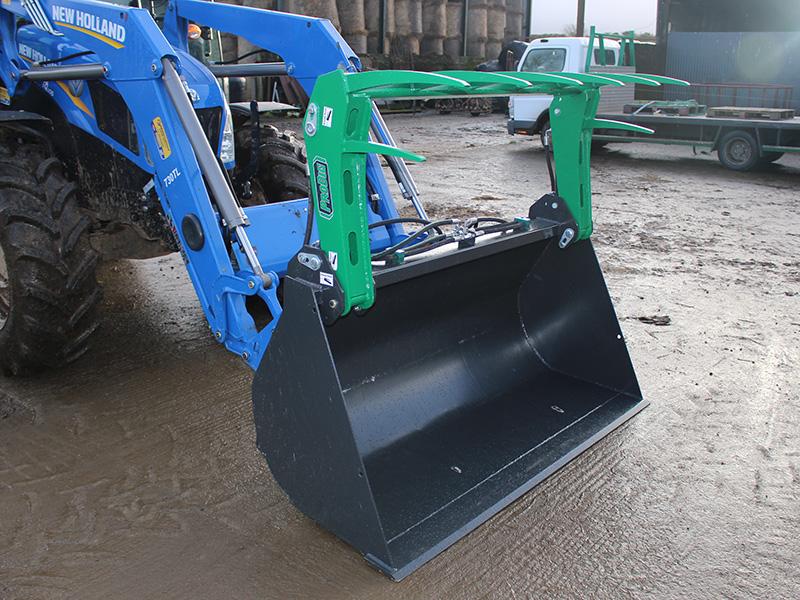

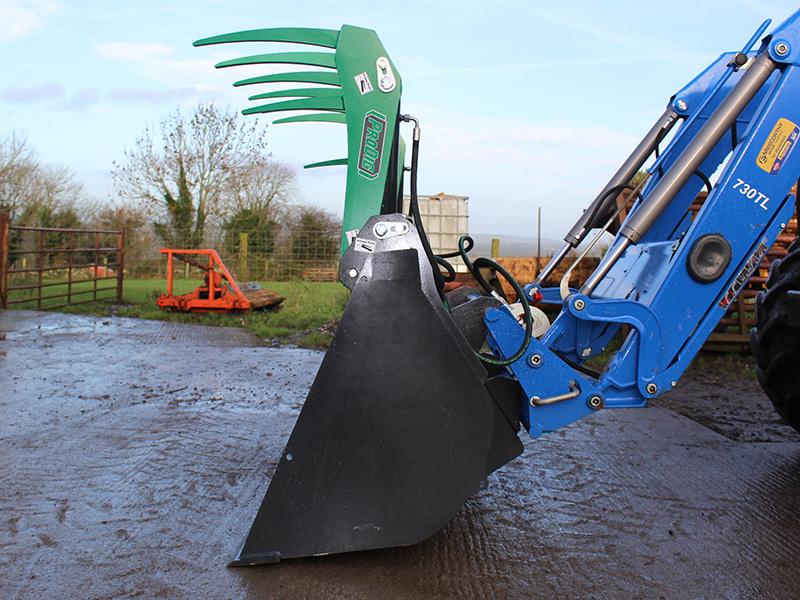

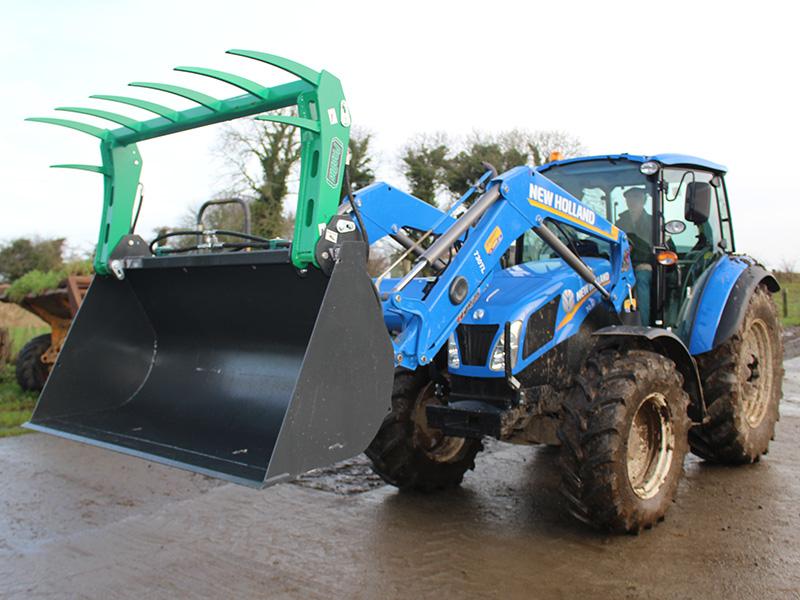

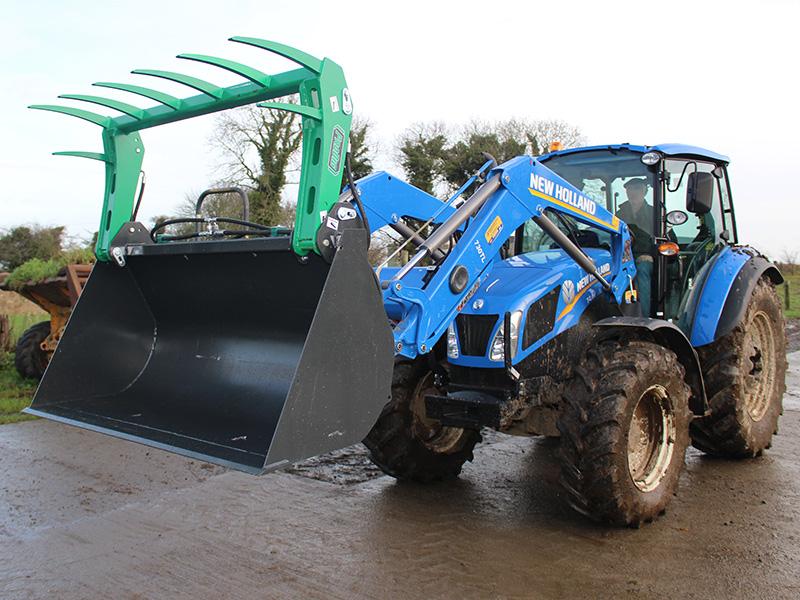

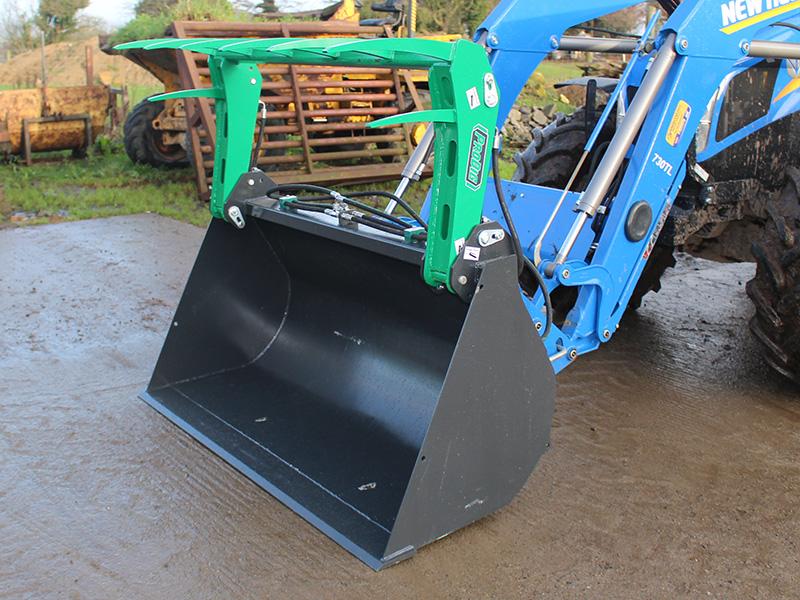

General Purpose Tractor Grapple Bucket
Choose options
Description
- Hydraulic grapples can be fitted to all of our GPT range of Tractor loader buckets.
- Ideal for efficient handling of maize, manure, recycling etc. on tractor loaders.
- Top mounted hydraulic cylinder configuration to increase downward force in piercing action.
- Capacity of bucket increased by 40% when handling loose materials.
- Heavy duty 8mm wall box section, and 10mm plate in grapple construction.
- 25mm thick curved profiled Hardox tines welded through box section.
- Twin double acting hydraulic cylinders are mounted the top of the bucket for extra downward force.
- All moving parts fitted with greasing points.
- Available with optional bolt in cut away sides.
- Not suitable for pit/clamp grass silage.
- Max machine lifting capacity: 3000kg.
Technical Data
| TRACTOR GRAPPLE BUCKET | GPTG 1500 | GPTG 1800 | GPTG 2100 | |
| Width (mm) | A | 1520 | 1820 | 2160 |
| Height (mm) | B | 930 | 930 | 930 |
| Depth (mm) | C | 1030 | 1030 | 1030 |
| Opening hight | D | 1500 | 1500 | 1500 |
| Grapple width (mm) | E | 1331 | 1608 | 1870 |
| Capacity of bucket (m³) | 0.45 (m³) | 0.55 (m³) | 0.8 (m³) | |
| Weight (kg) | 303 | 335 | 371 | |
| Shell (mm) | 4 | 4 | 4 | |
| Sides (mm) | 6 | 6 | 6 | |
| Cutting edge | 150×16 | 150×16 | 150×16 | |
| Tine lenght | 540 | 540 | 540 | |
| Number of top tines | 5 (plus 2 side tines) | 6 (plus 2 side tines) | 7 (plus 2 side tines) | |
| Tine spacing (mm) | 280 | 290 | 280 | |
| Tine Width (mm) | 25mm HARDOX | 25mm HARDOX | 25mm HARDOX | |
| Number of cylinders x Diameter (mm) | 2x70mm Bore, 40mm Rod | 2x70mm Bore, 40mm Rod | 2x70mm Bore, 40mm Rod | |
| *Maximum working pressure (BAR) | 200 | 200 | 200 | |
| Max machine lifting capacity (kg) | 3000 | 3000 | 3000 |
All measurements approx. (±5mm, ±5kg),
Weight includes Euro Quickie brackets.
*Machines operating above 200 BAR will require a pressure relief valve.
