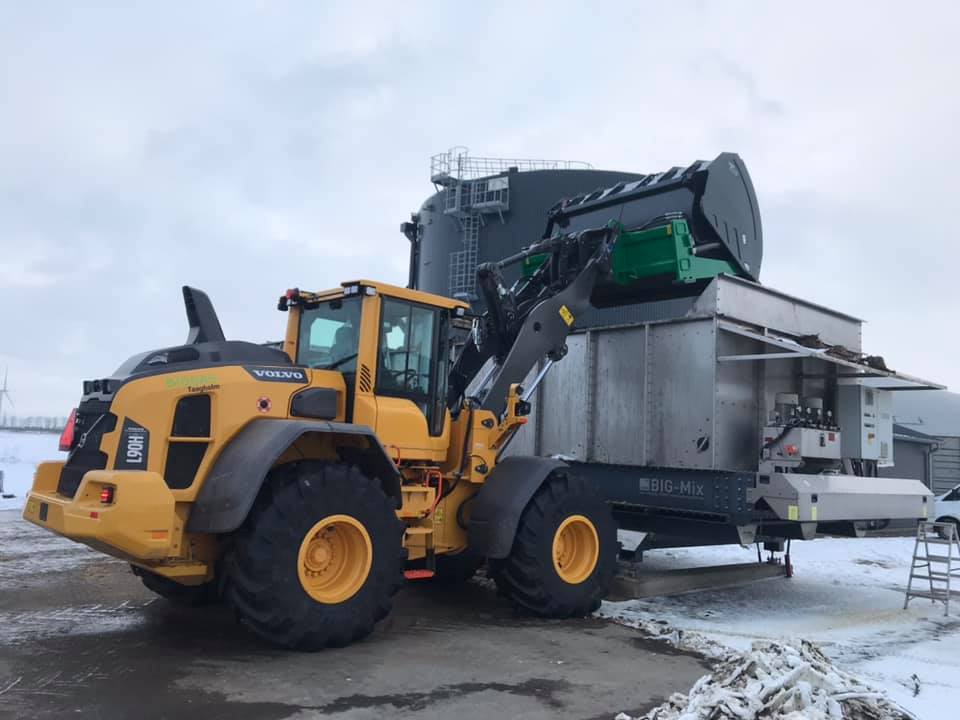

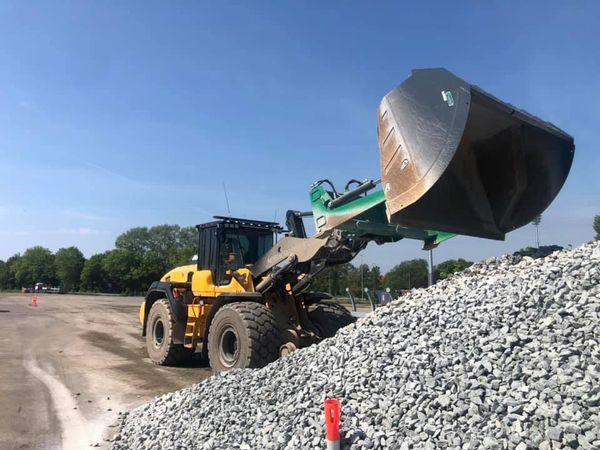

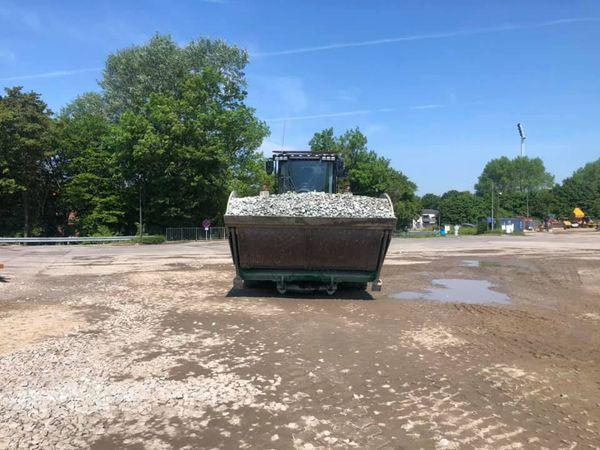

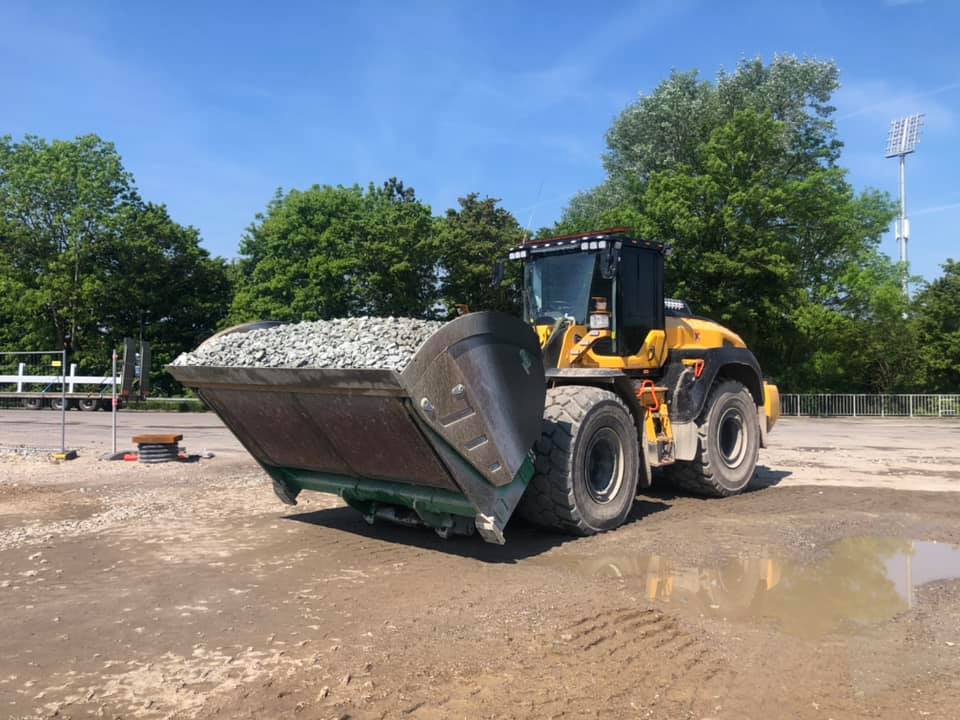

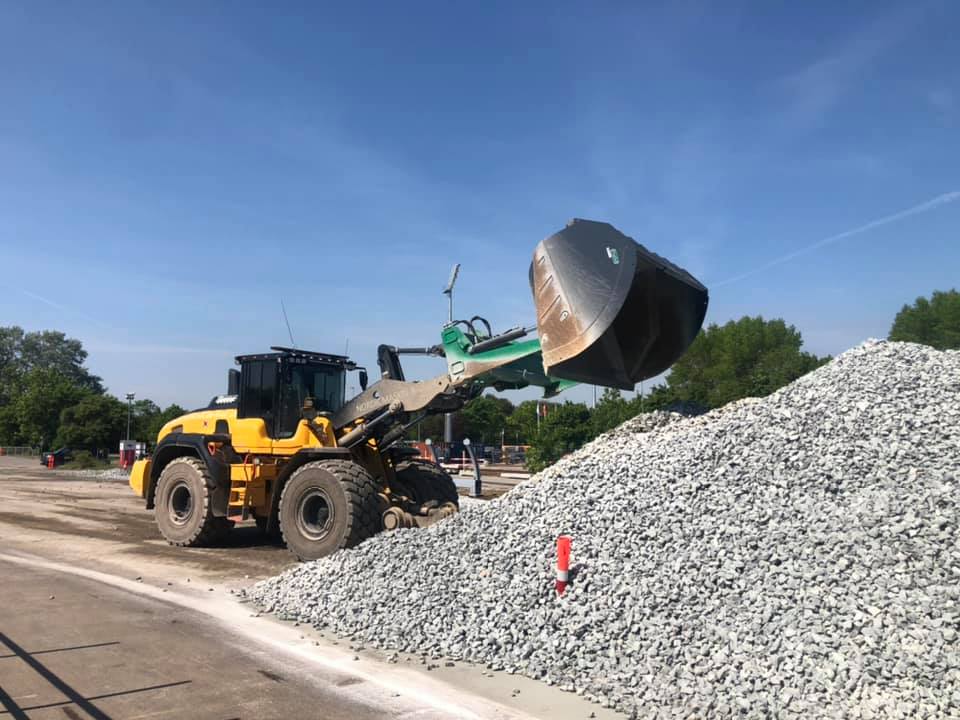

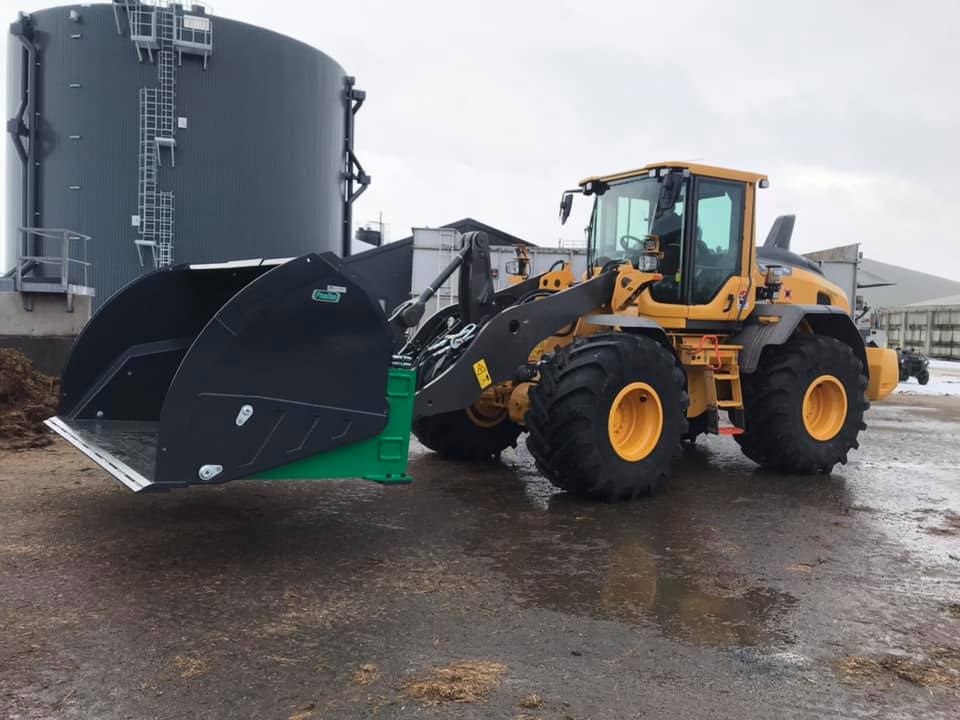

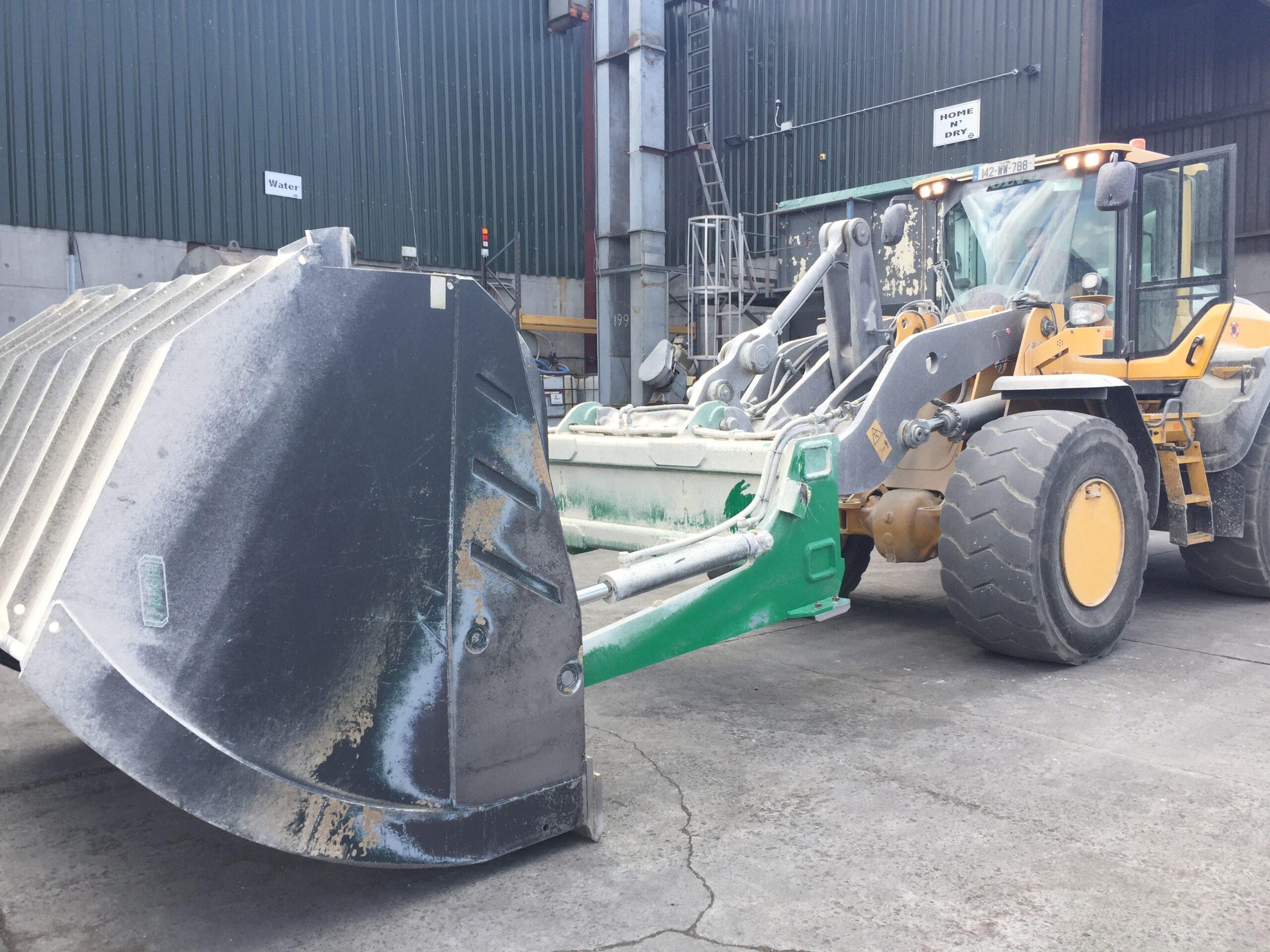

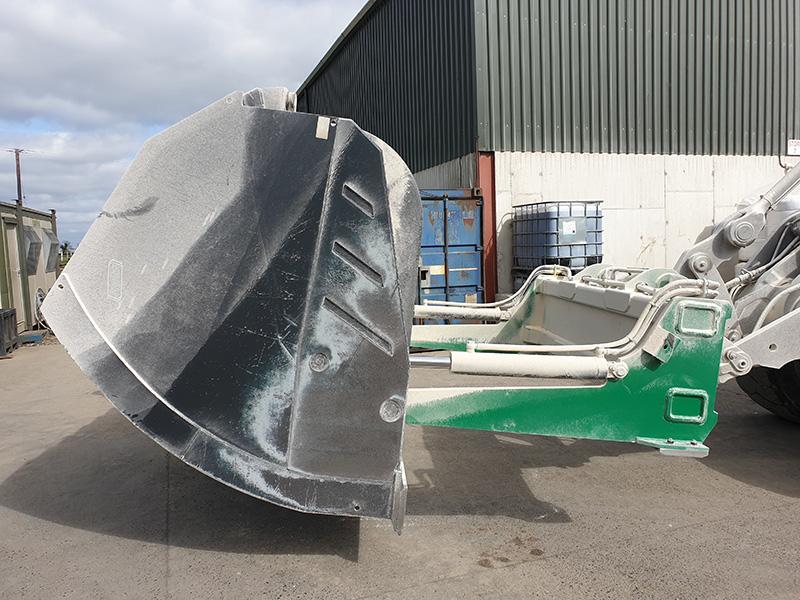

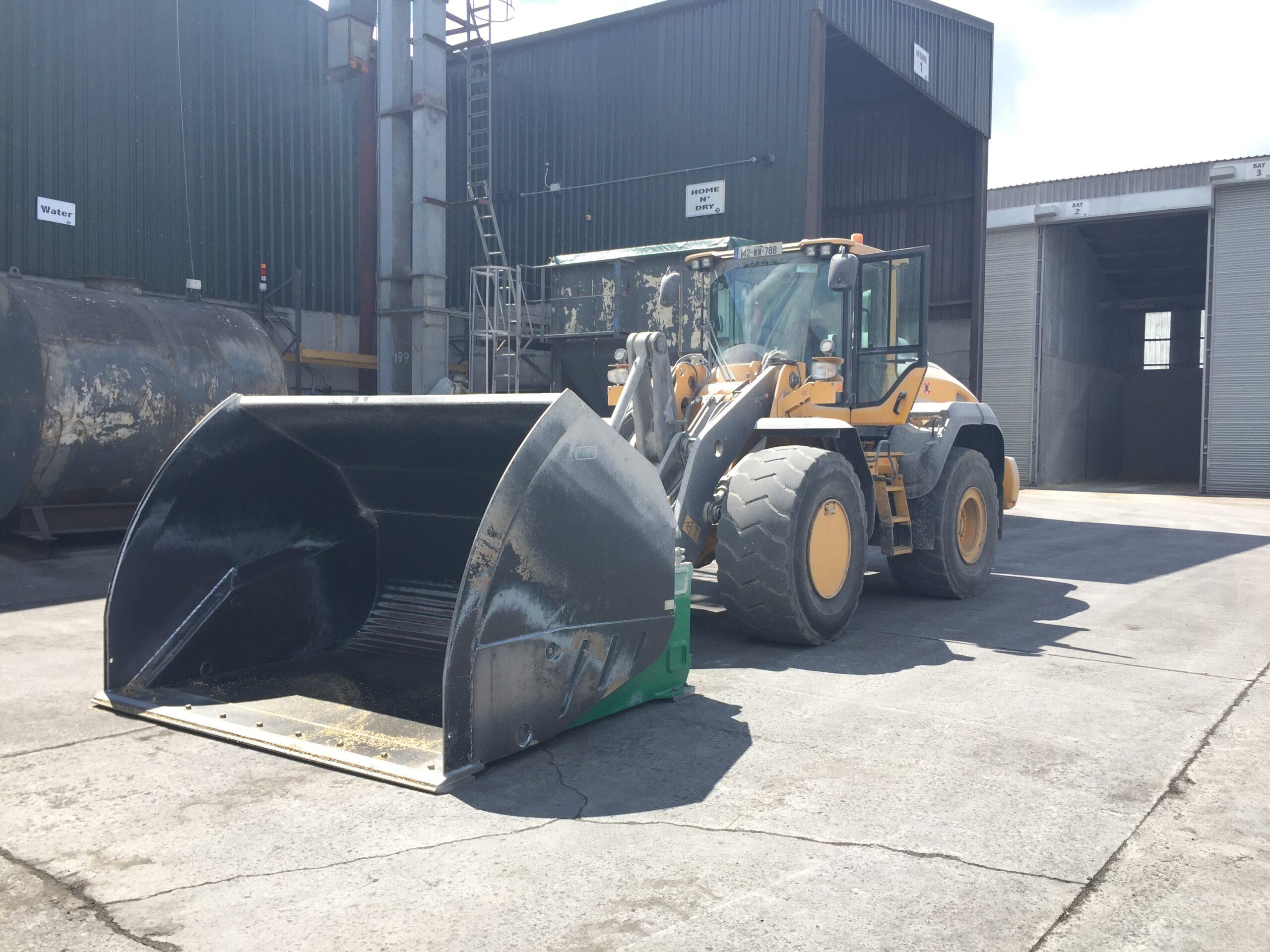

Heavy Duty Hi Tip Bucket

Description

The Heavy Duty Hi-Tip backet is designed for large wheel loaders for industrial & agricultural use. This bucket is designed for use on loaders with up to 18 tonne lift / break-out force.

• Available in our standard range of capacities from 3.65m³ up to 8.0 m³.
• 40mm Hardox steel used in the carriage frame arms for a longer working life and superior strength.
• Designed for loaders with up to 18 tonne lift / breakout force.

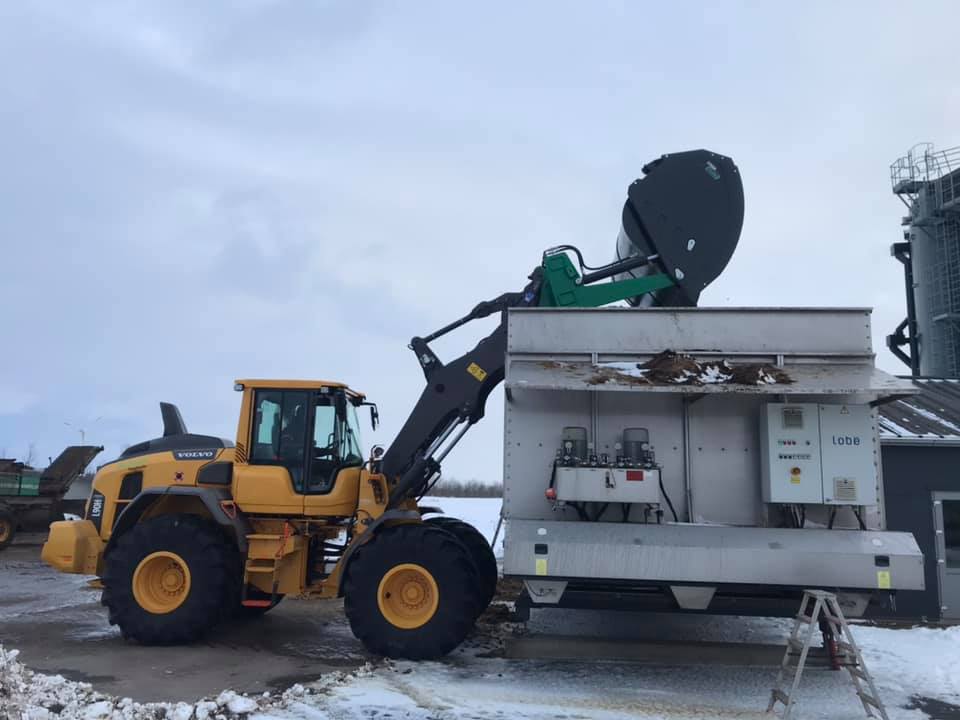

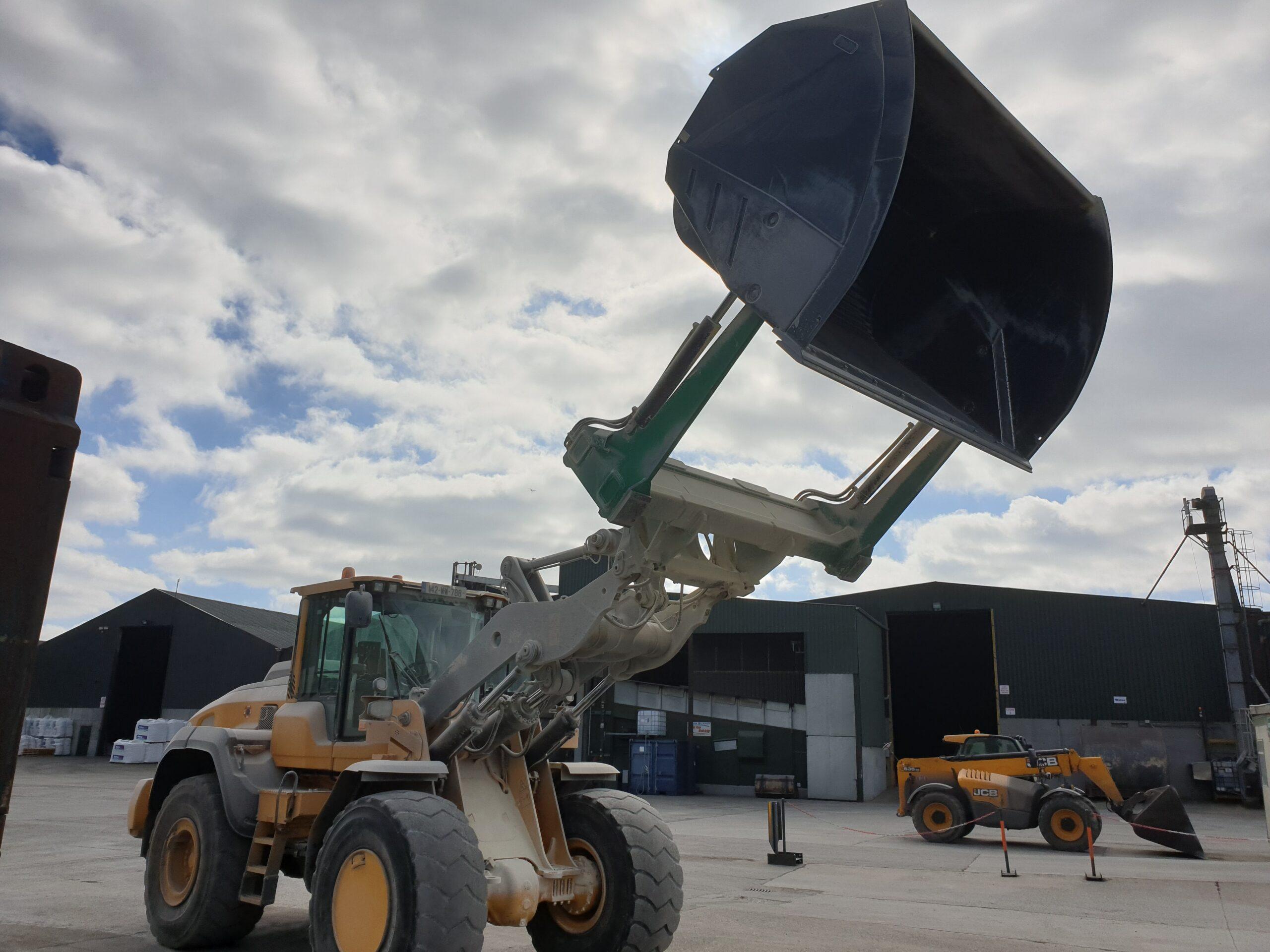

• Discharge height and forward reach increased by 1800mm to 2400mm respectively.

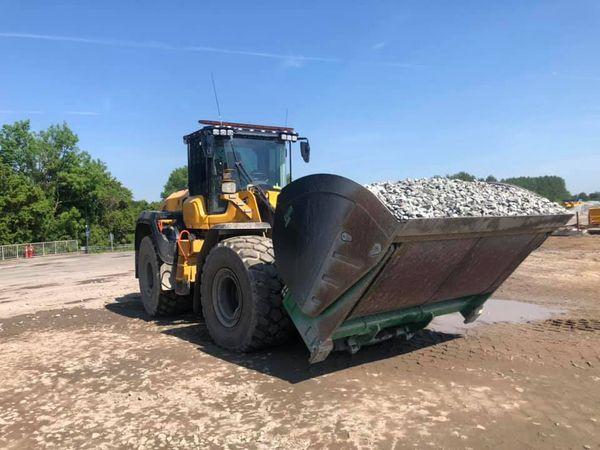

• For use with various bulk materials such as gravel, grain, woodchips, compost, coal etc.

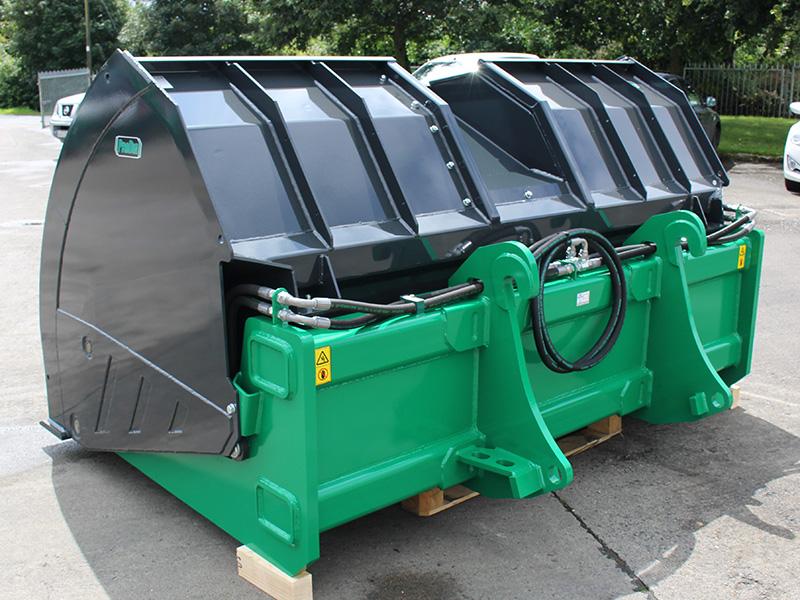

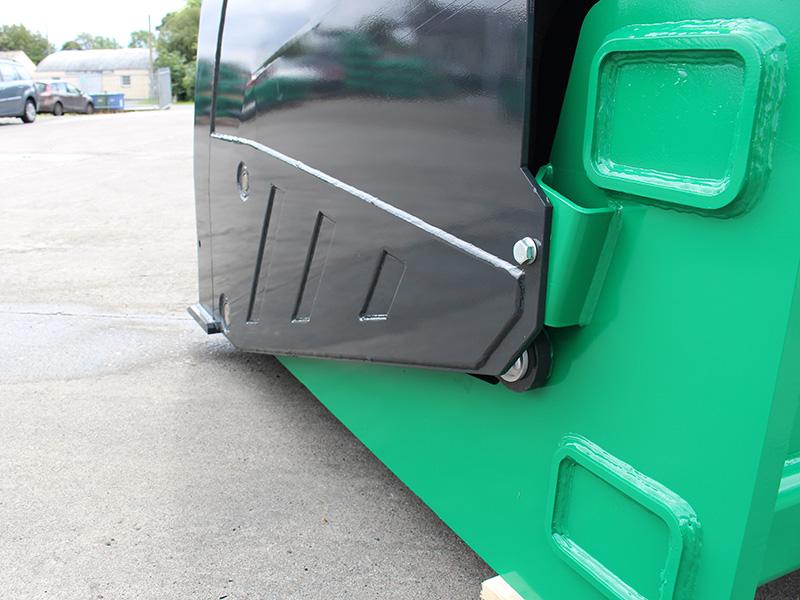

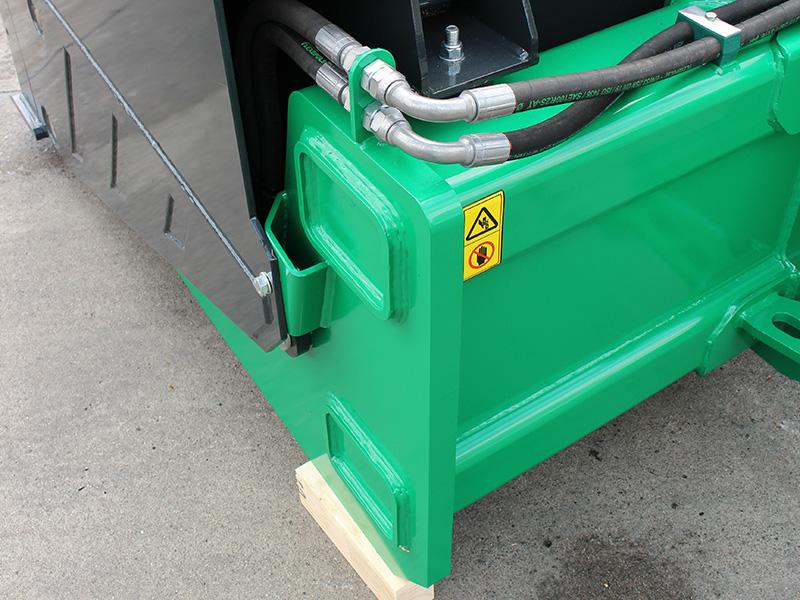

• The “soft close” double acting hydraulic cylinders are protected within double skin sides & Hardox cap plate.

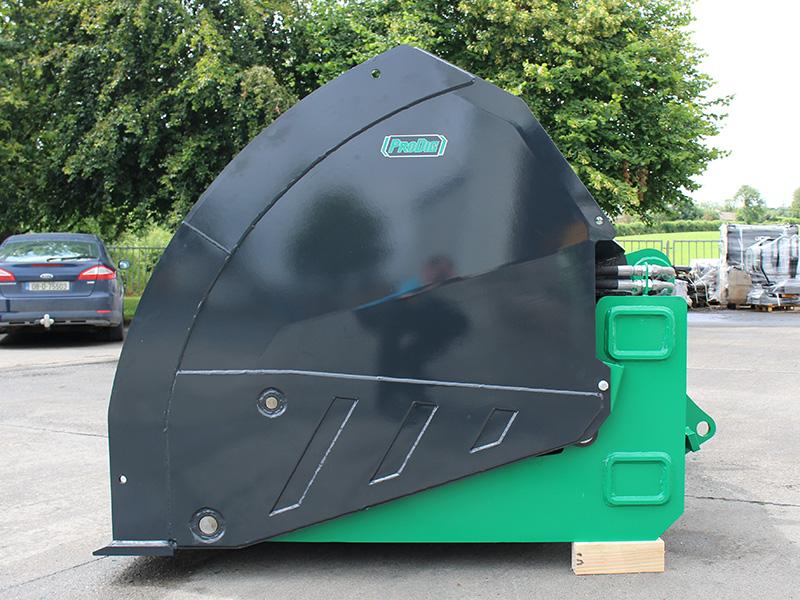

• Made with a Hardox steel shell, leading edge, inner & outer bucket side.
• Hardox arms & high yield alloy steel used in the carriage frame for a longer working life & superior strength.

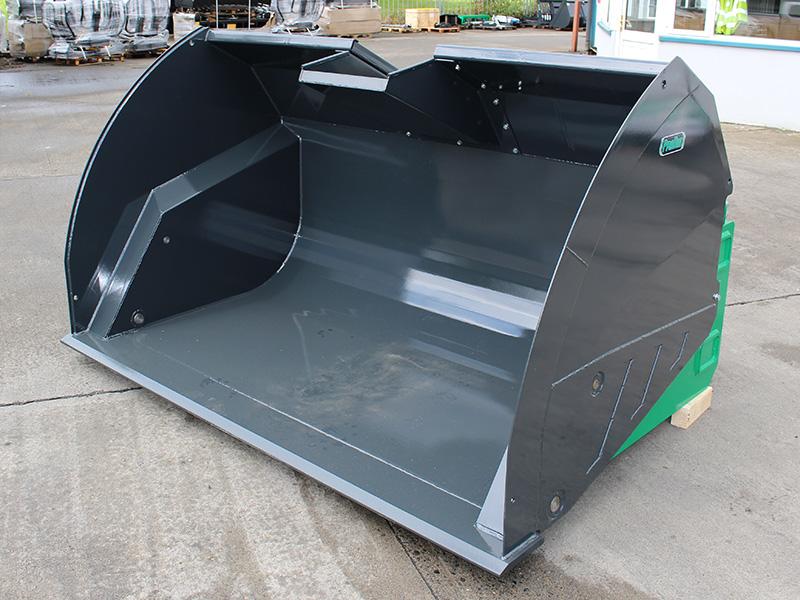

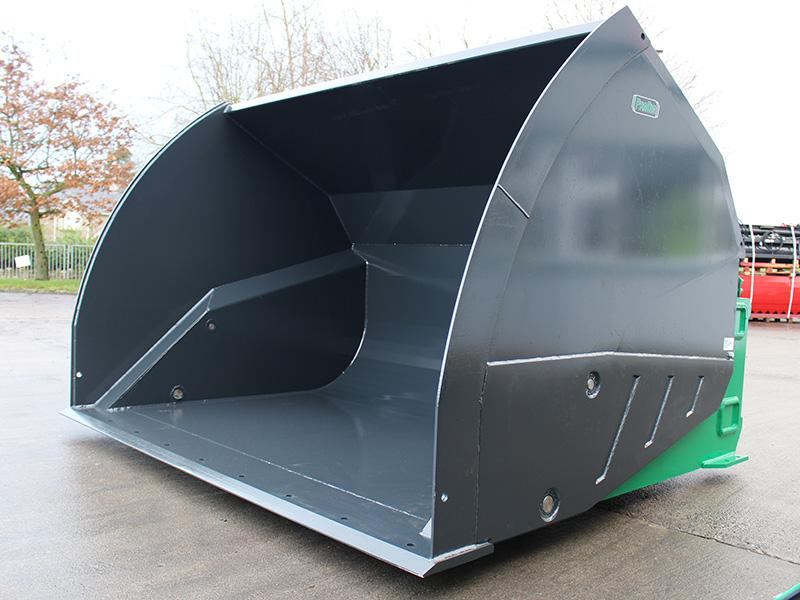

• Flat floor for easy loading, with 400 grade steel cutting edge.
• Can be fitted with optional 400 grade bolt on reversible cutting edge or second weld on edge.
• Designed with water level crowd-back to retain more material.

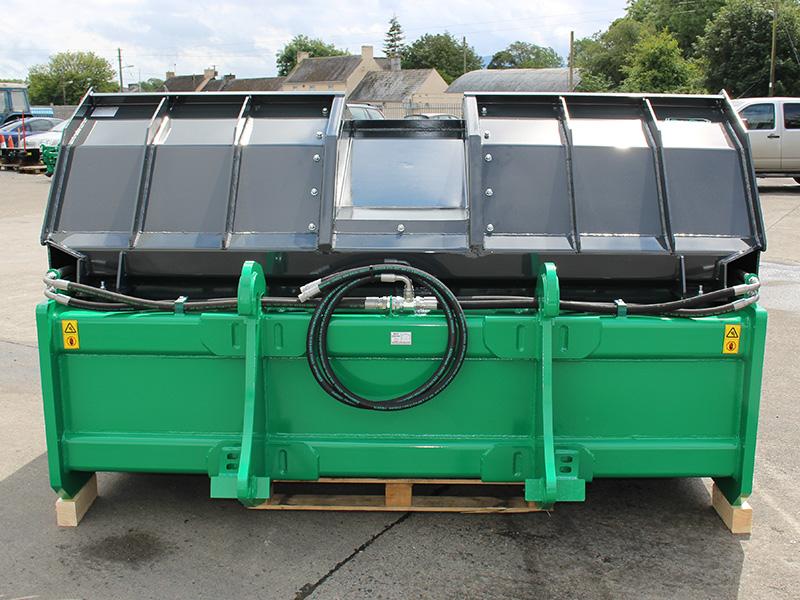

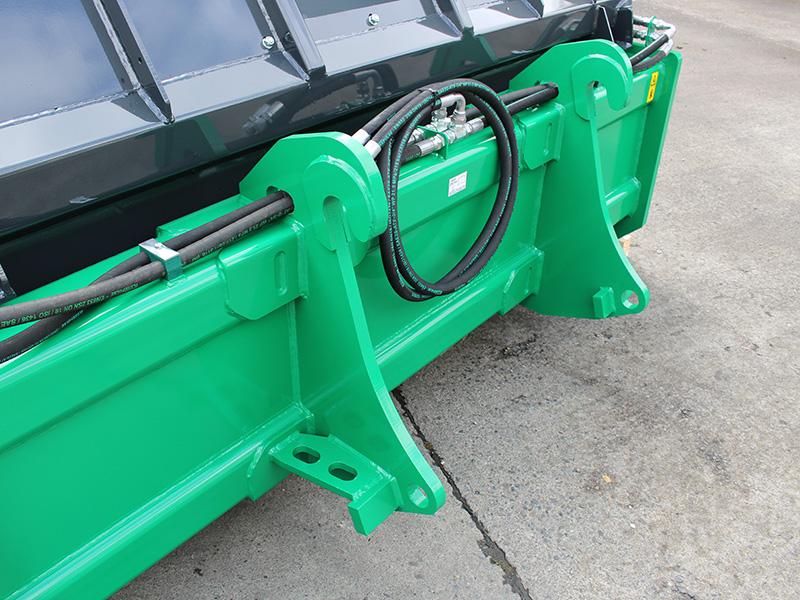

• Weld on hitch brackets to suit any machine type.
• Optional Extras: 3 Part bolt on cutting edge, second weld on cutting edge, Z-linkage cut out & colour options.

Technical Data

All measurements approx. (±5%mm, ±5%kg)
Weights may vary depending on add-ons and brackets.
Weight shown includes euro 50 brackets
