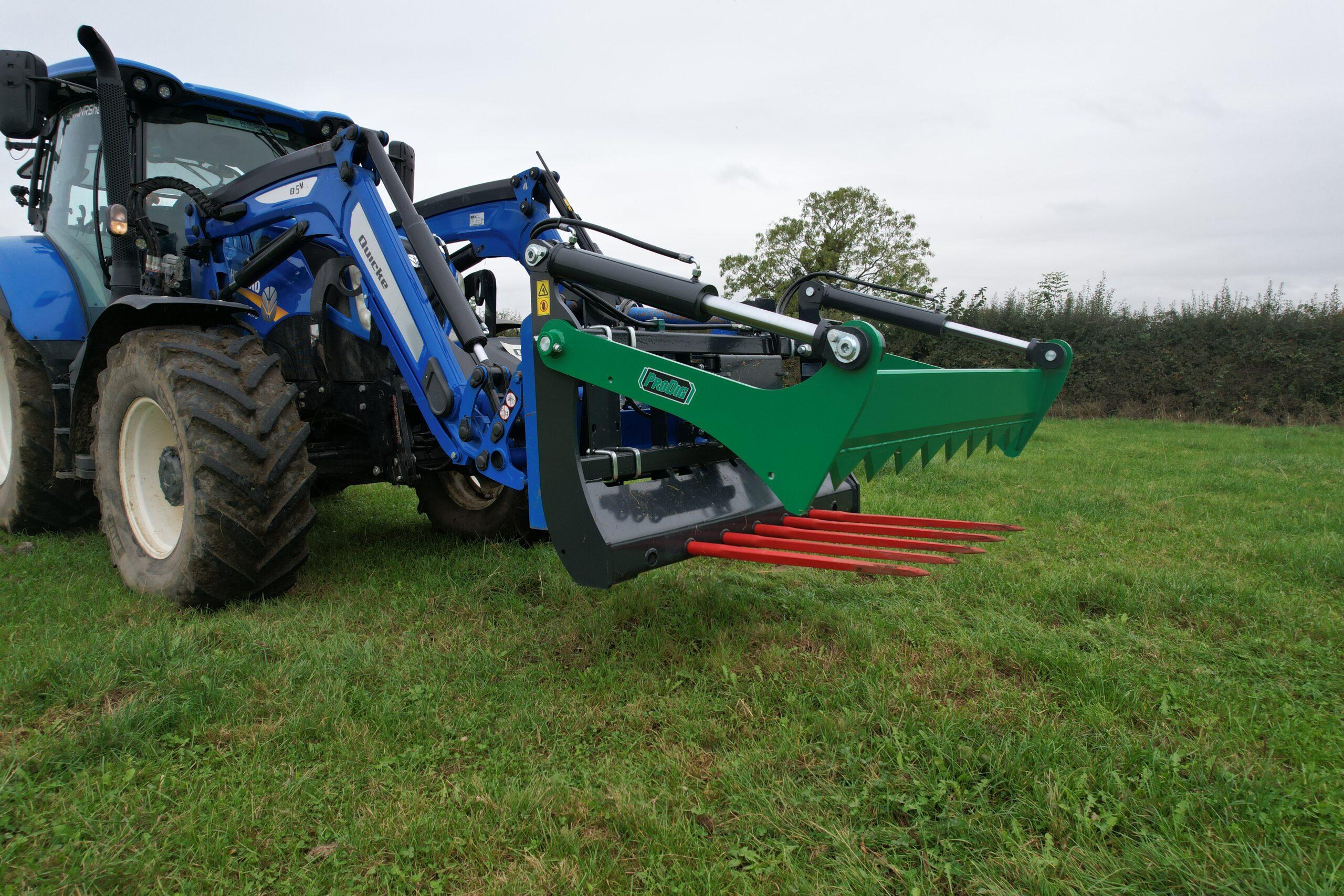

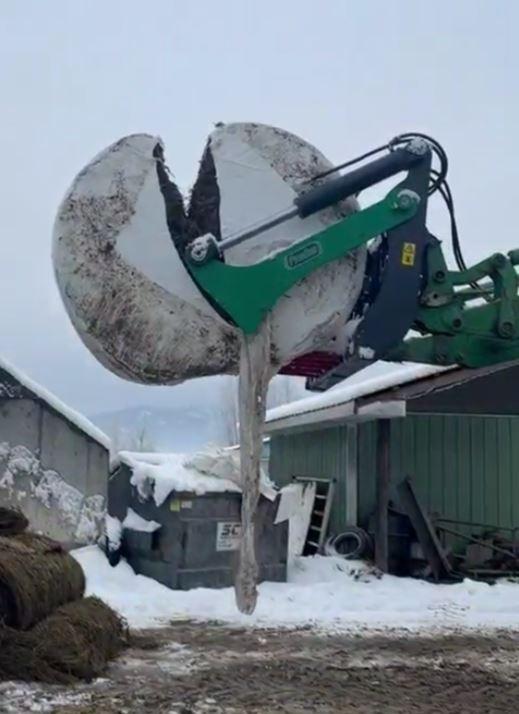

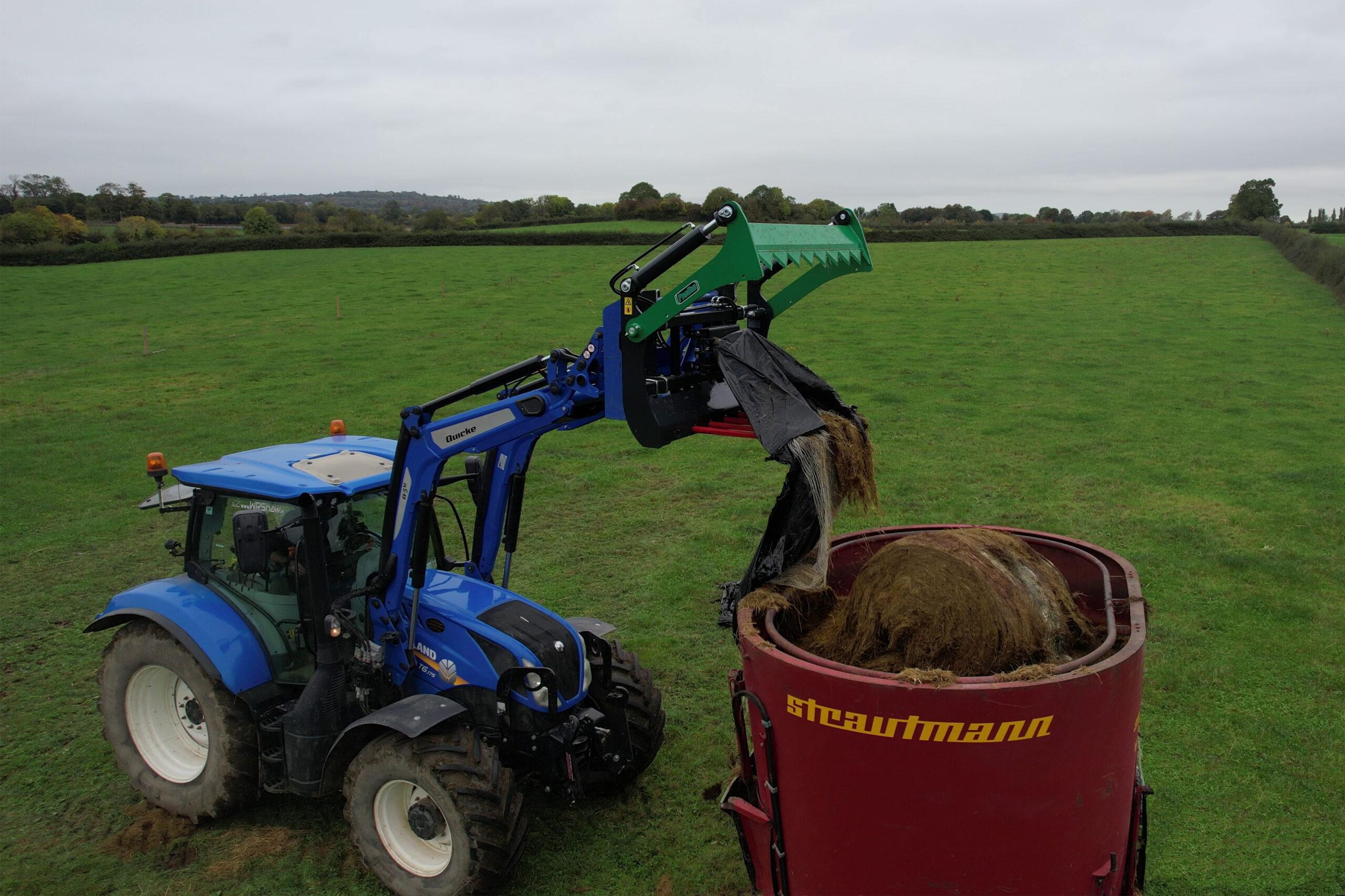

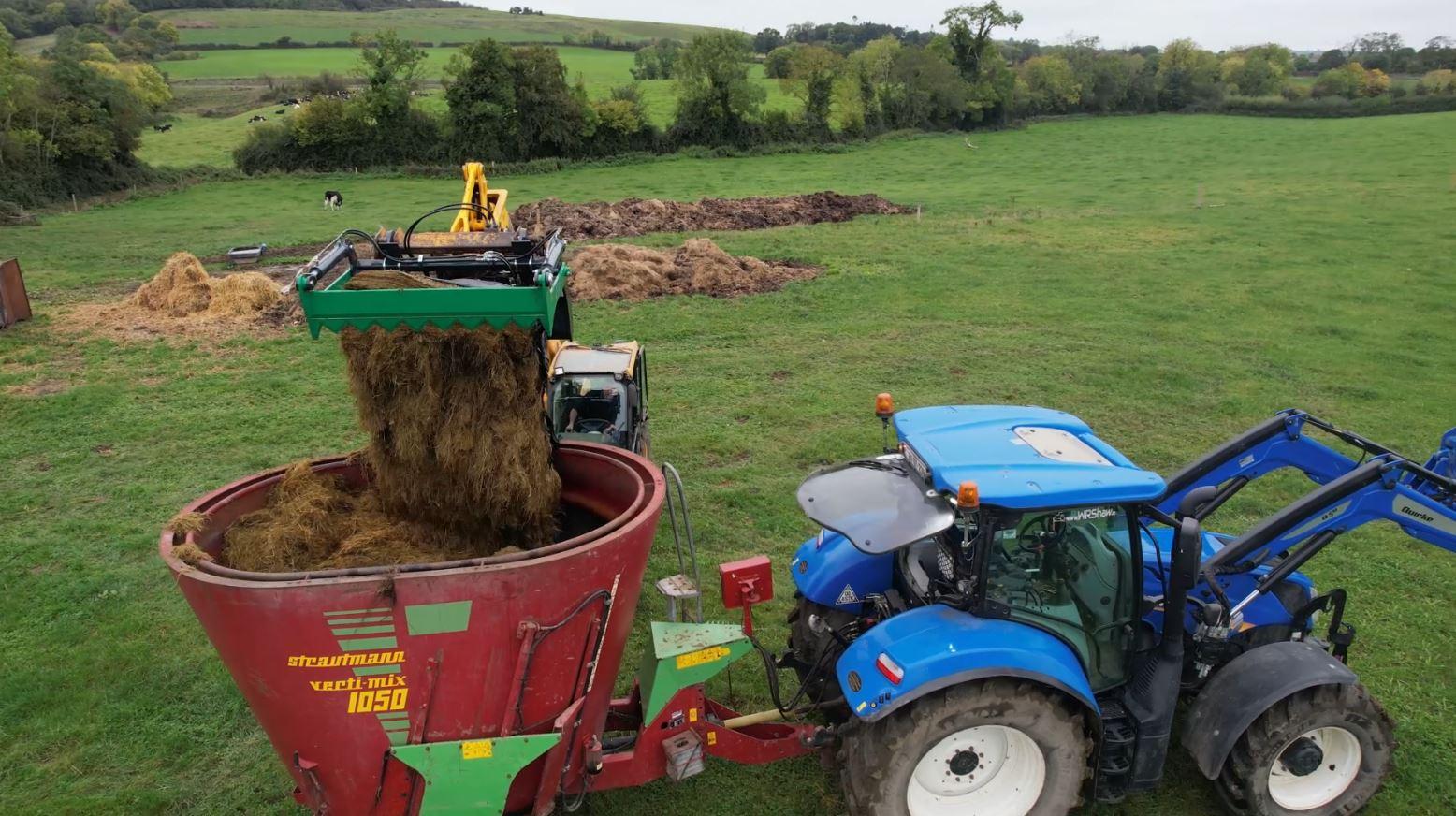

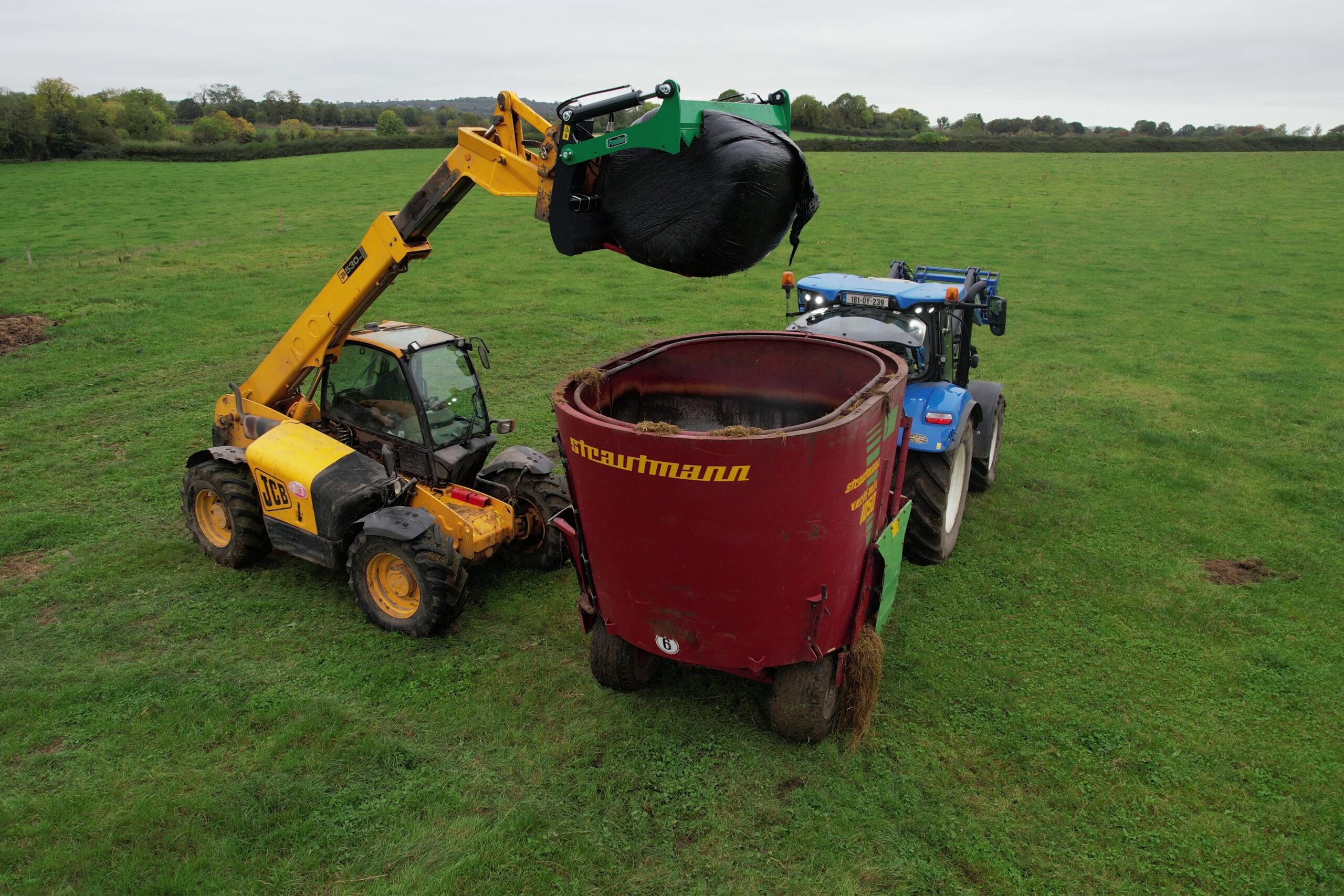

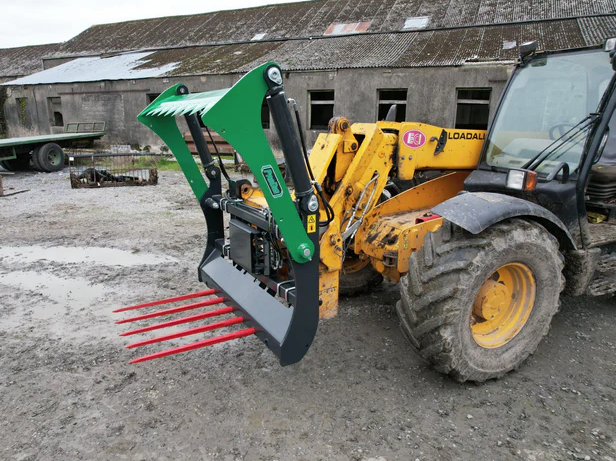

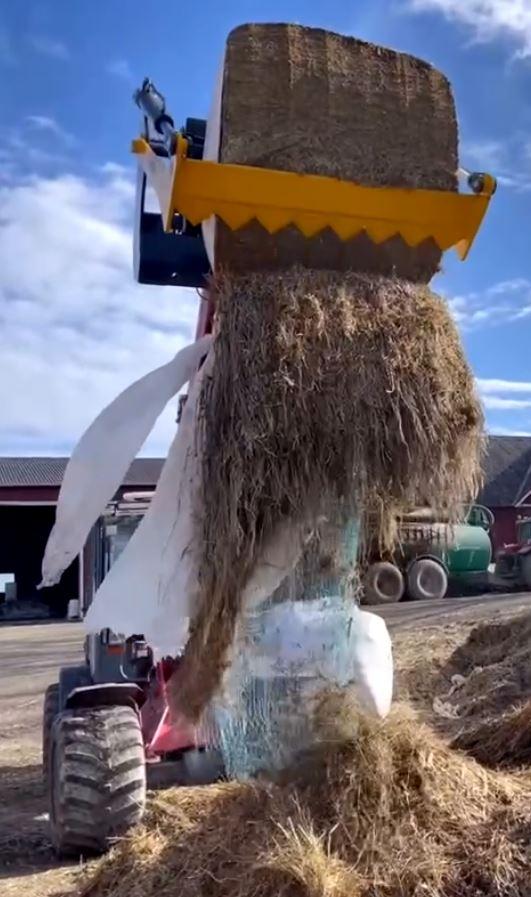

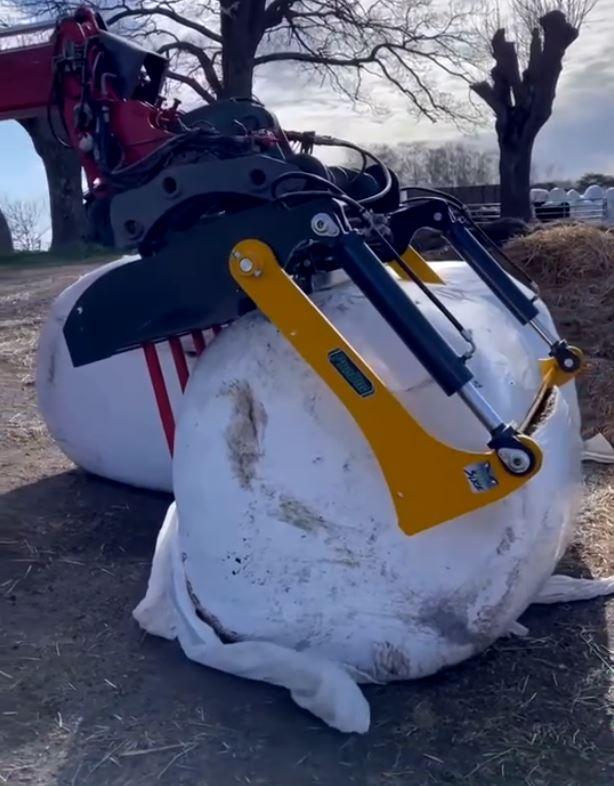

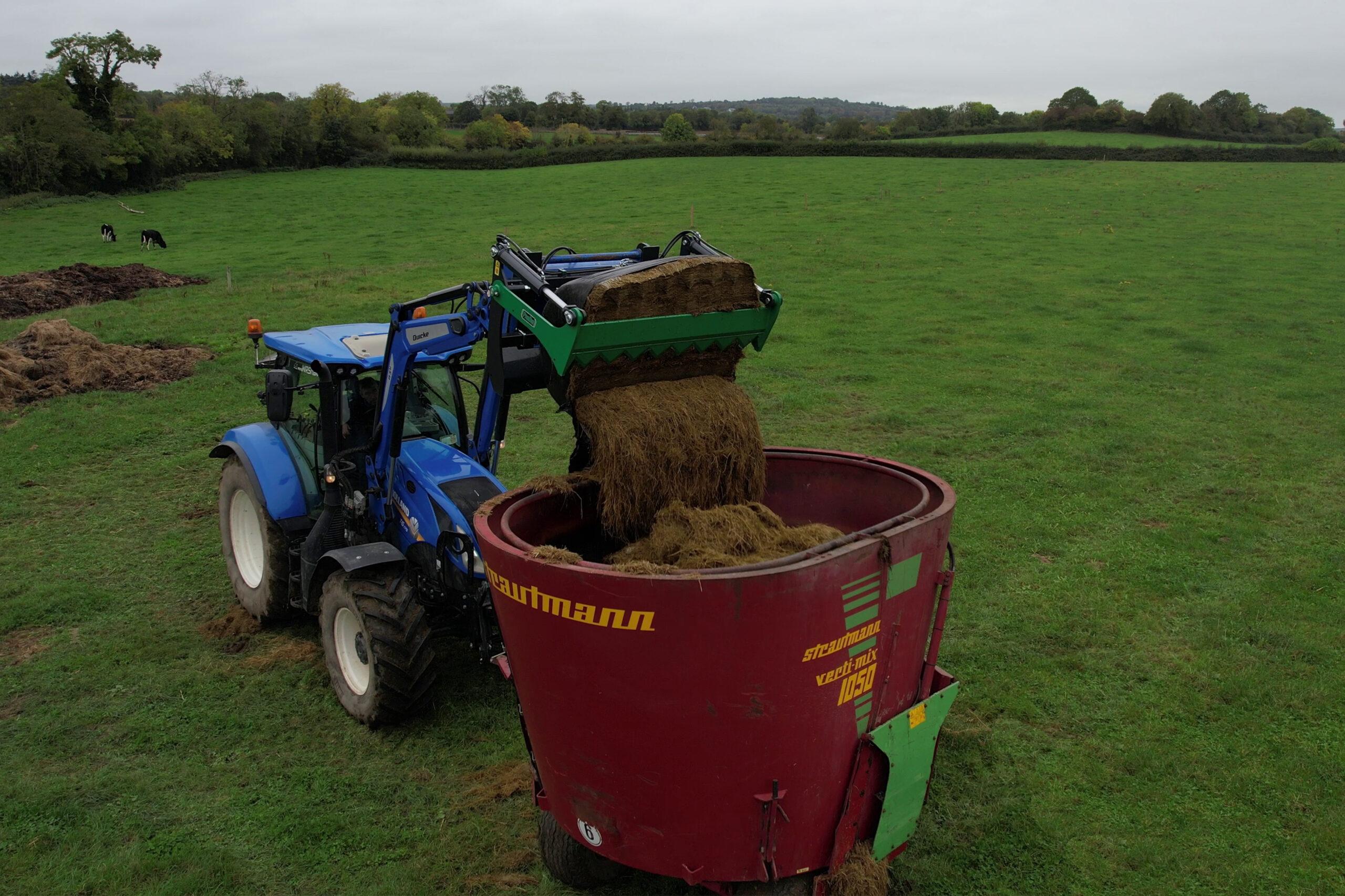

The Prodig Pro Slice is designed specifically to split round bales and retain the plastic/ netting. Capable of splitting 4ft & 5ft bales in the same unit while reducing the need to exit the cab while feeding bales. Manufactured using Hardox plate, heat treated hardened cutting blades and bushed pivot points.
- Compatible with 1.2m (4ft) & 1.5m (5ft) bales of silage, hay & straw.

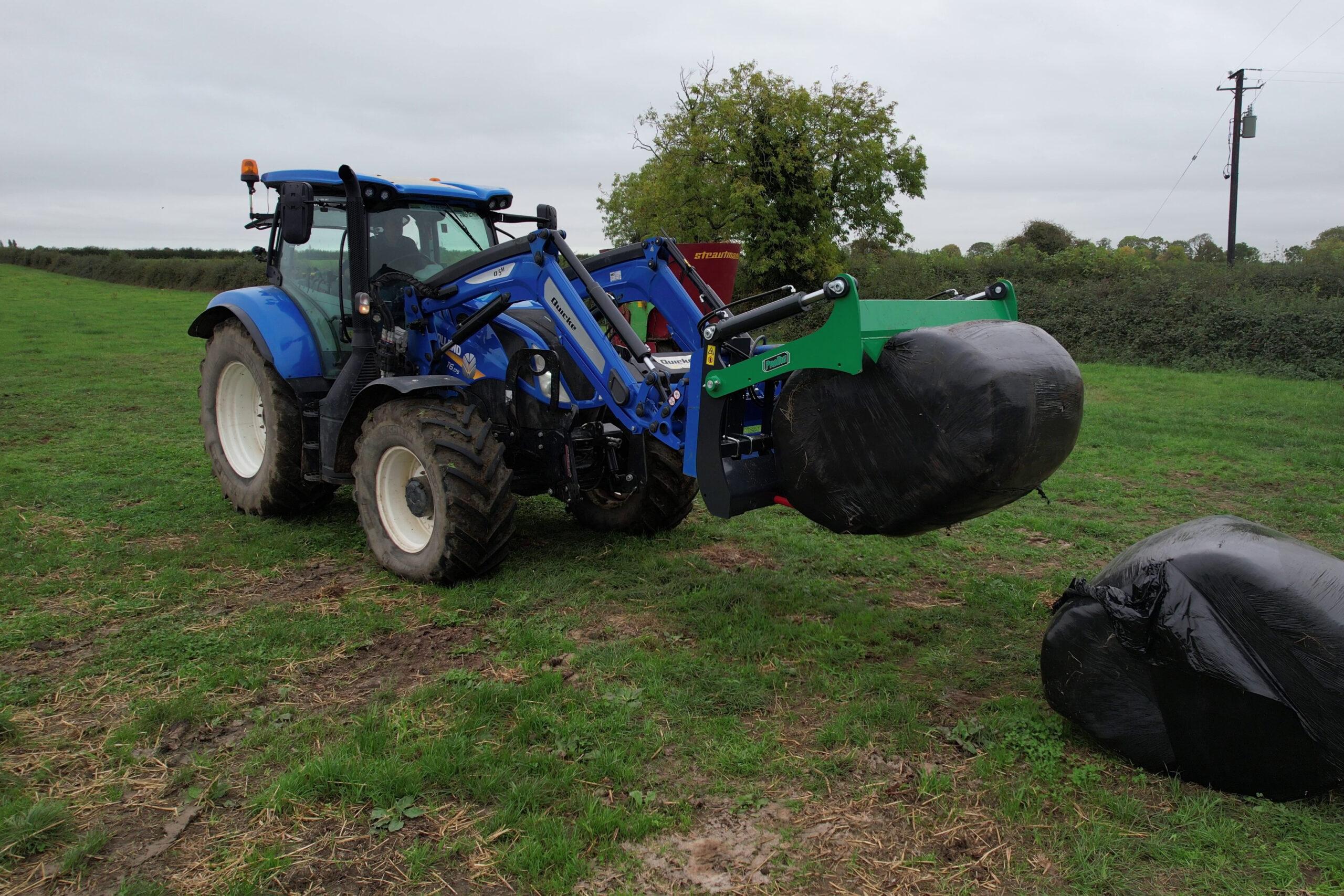

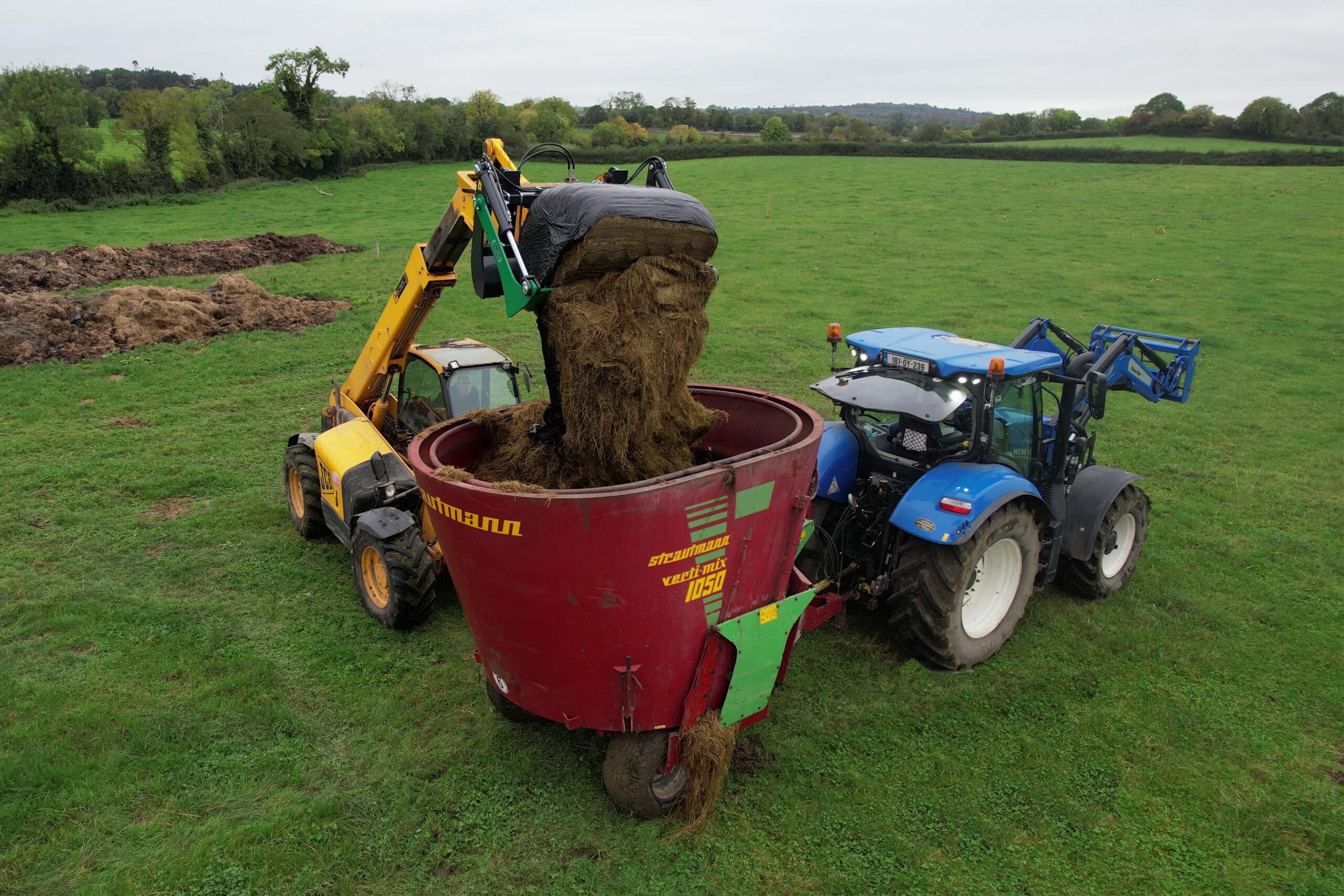

- Suitable for use on tractors, tele-handlers & wheeled loaders.

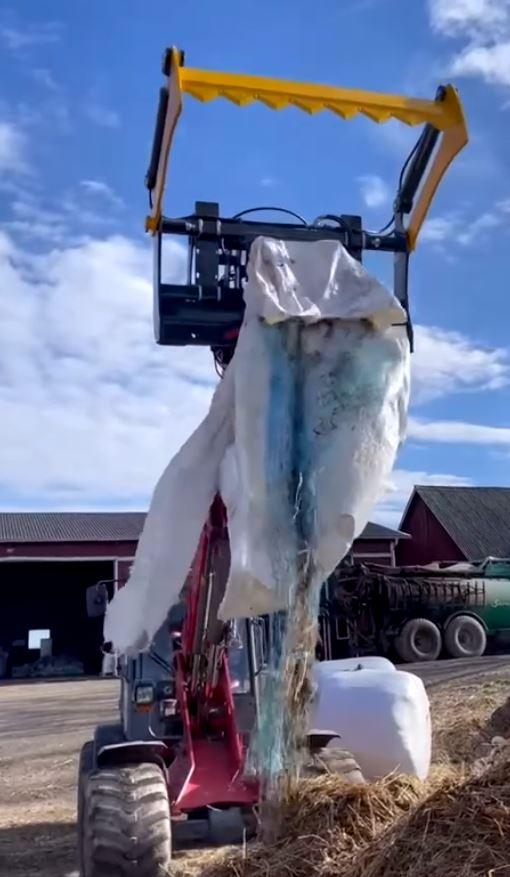

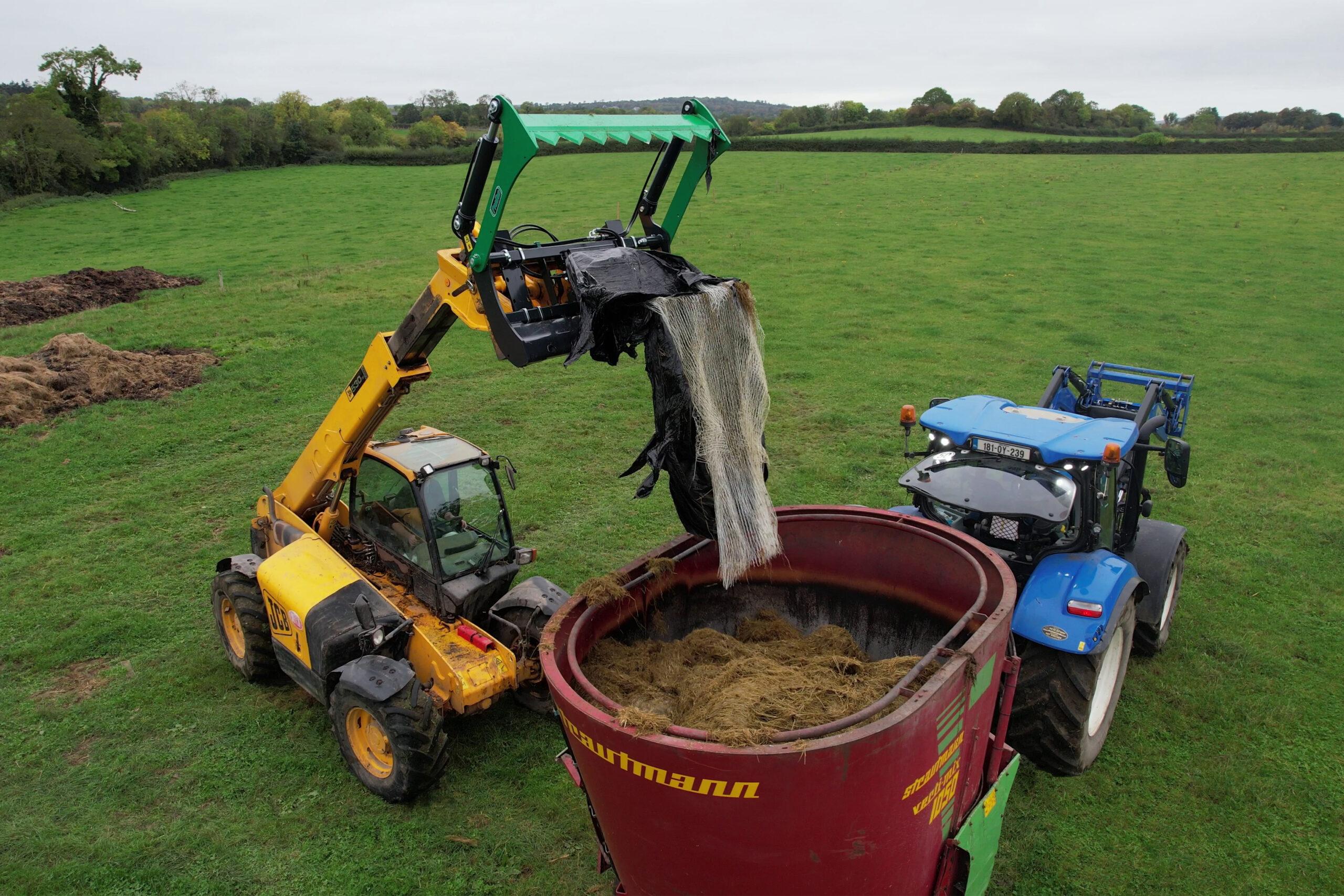

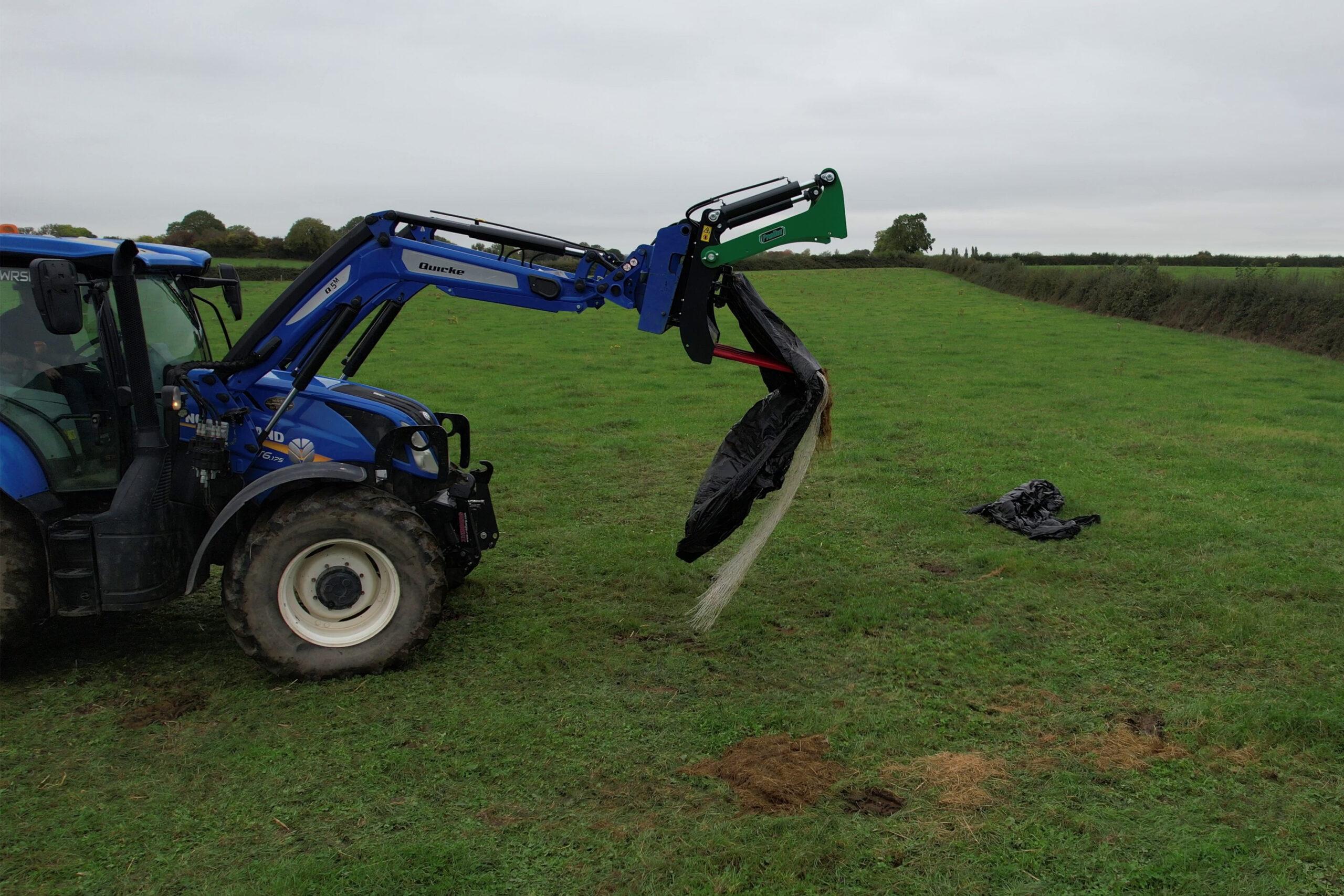

- Fitted with our reliable 6 claw plastic/net gripper system.

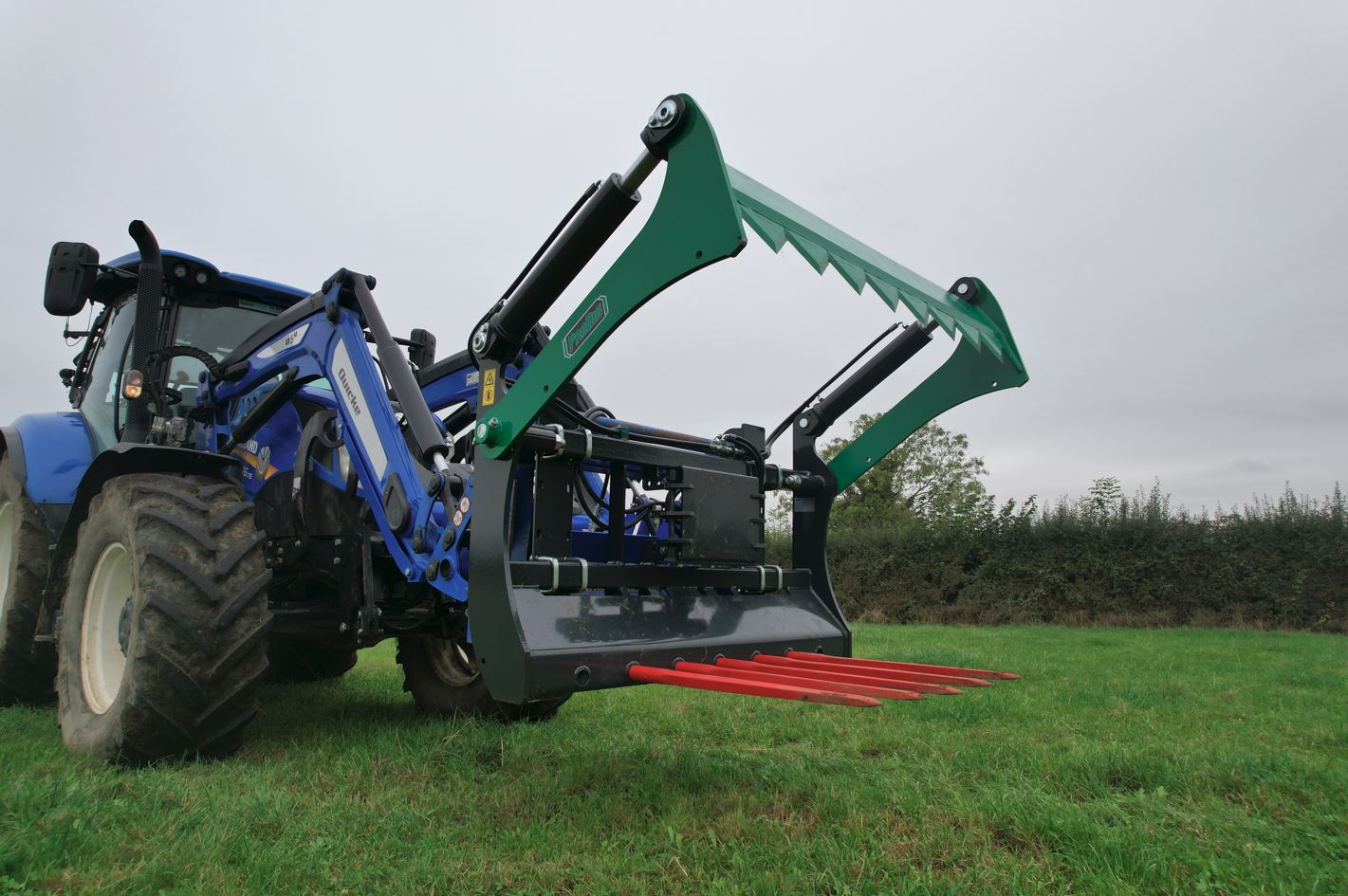

- Fitted with five 985mm (39″) heavy duty conus 2 tines with the option of two additional tines.
- Heat treated hardened cutting blades as standard for superior cut and long life.
- Manufactured using Hardox steel in the arms and fork and high tensile steel in grapple front.
- 45mm pivot pins fitted with wrapped PTFE lined bearing bushings.
- 40mm ram pins fitted with glacier acetal lined bushings
- All pivot points fitted with replaceable, greaseable bushings.
- Nickel chrome plated hydraulic rams for long life in an aggressive environment.
- Bolt on hitch brackets to suit all machines.
Technical Data
| Model | Pro Slice | |
| Weight, with gripper (kg) | 452 | |
| Weight, without gripper (kg) | 424 | |
| Gripper Weight (kg) | 28 | |
| Total width (mm) | 1770 | |
| Cutting width (mm) | 1650 | |
| Total depth (mm) | 1120 | |
| Total height (mm) | 1065 | |
| Max Opening (mm) | 1470 | |
| Max height (open implement) (mm) | 1770 | |
| Max bale Size (mm) | 1525 x 1525 (5ft x 5ft) | |
| Max bale Weight (kg) | 1500 | |
| Number of cylinders x Diameter (mm) | 2 x 90 Bore | |
| *Maximum working pressure (BAR) | 200 BAR | |
| **Required oil pressure (BAR) | 160 BAR | |
| **Required lifting (kg) | 1250 | |
| Number of tines | 5 (optional plus 2) | |
| Tine Size | Conus 2 | |
| Tine Length (mm) | 990 | |
| Distance between tines (mm) | 200 |
All measurements approx (±5mm, ±5kg), Weight excludes brackets as these vary
*Machines operating above 200 BAR will require a pressure relief valve.
**This information depends on the type of silage and serves as guidance only.
| Cuttable Bale sizes: Diameter (mm) x Width(mm) |
| 1200mm x 1200mm (4ft x 4ft) |
| 1200mm x 1525mm (4ft x 5ft) |
| 1525mm x 1200mm (5ft x 4ft) |
|
1525mm x 1525mm (5ft x 5ft) |
